01 - Freezer Compartment


02 - Fresh Food Compartment


03 - Fresh Food Door


04 - Unit Compartment & System

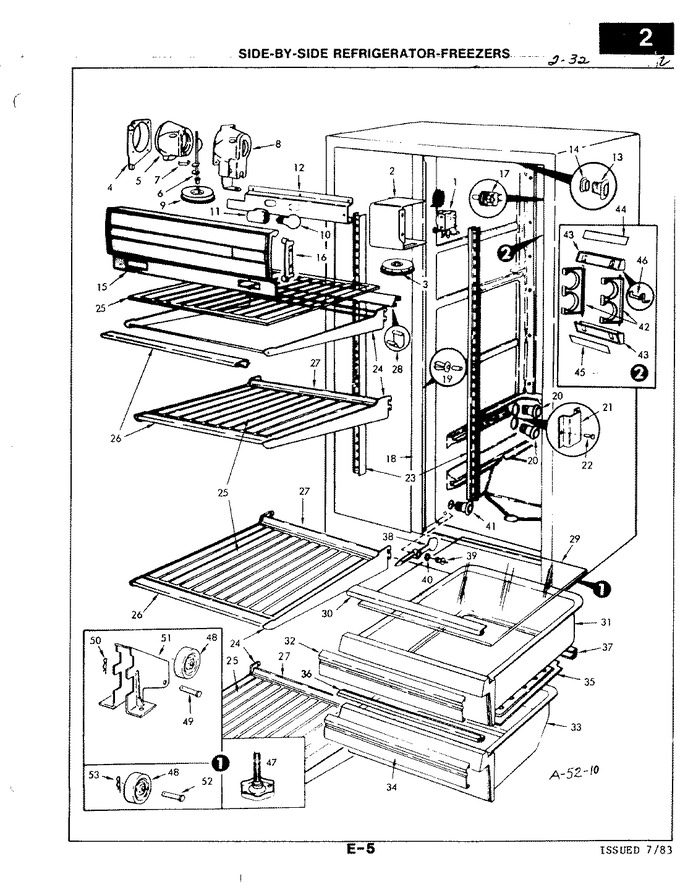

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52881-41		Control, Temperature		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
2	53682-9		Housing		Appelez-nous	-
3	29893-5		Knob		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
6	52587-2		Damper		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	58760-2		Housing, Freezer Control		Appelez-nous	-
8	400027-1		Screw		Appelez-nous	-
9	402005-103		Screw		Appelez-nous	-
9	29893-6		Knob		Appelez-nous	-
10	W10887190		Bulb, Light   (Replaces: 55771)			Immediately	$ 16.48
11	29814-2		Receptacle, Light		Appelez-nous	-
12	59740-1		Housing		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
13	57410-1		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	59333-25		Shield		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
16	53686-2		Support		Appelez-nous	-
17	56432-2		Switch		Appelez-nous	-
18	59026-2-HW		Mullion		Appelez-nous	-
18	53060-4		Clip		Appelez-nous	-
19	59920-9		Stud, (alm)		Appelez-nous	-
20	53726-1		Air Tunnel		Appelez-nous	-
21	62128-1		Air Deflector		Appelez-nous	-
22	28013-2		Rivet, Air Tunnel		Appelez-nous	-
23	58381-1		Support		Appelez-nous	-
23	400037-1		Screw		Appelez-nous	-
24	64343-1		Shelf Frame		Appelez-nous	-
25	62438-26		Shelf, Glass		Appelez-nous	-
26	65005-10		Trim		Appelez-nous	-
27	52014-115		Trim		Appelez-nous	-
28	64151-1		Clip		Appelez-nous	-
29	65254-3		Shelf, Crisper		Appelez-nous	-
30	65255-2		Trim		Appelez-nous	-
31	59395-23		Pan, Crisper		Appelez-nous	-
32	59317-66		Handle		Appelez-nous	-
33	59592-36		Pan, Meat		Appelez-nous	-
34	59317-67		Handle		Appelez-nous	-
35	53934-7		Cover		Appelez-nous	-
36	54102-1		Gasket		Appelez-nous	-
37	54103-1		Gasket		Appelez-nous	-
38	54731-2		Leveler		Appelez-nous	-
39	53914-2		Stud		Appelez-nous	-
40	420096-900		Washer		Appelez-nous	-
41	53726-2		Tunnel, Air (meat)		Appelez-nous	-
42	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
42	56519-4		Rack, Wine		Appelez-nous	-
43	57205-4		Support		Appelez-nous	-
44	57206-1		Insert		Appelez-nous	-
45	59299-6		Insert		Appelez-nous	-
46	58057-1		Spring, Wine Rack		Appelez-nous	-
47	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
48	29834-2		Wheel		Appelez-nous	-
49	62580-1		Pivot Pin, Wheel (rear)		Appelez-nous	-
50	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
51	400062-1		Screw		Appelez-nous	-
51	52846-1		Bracket		Appelez-nous	-
52	62580-1		Pivot Pin, Wheel (rear)		Appelez-nous	-
53	56438-1		Clip, Food Liner Mount.top&bot		Appelez-nous	-
53	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
53	57418-1		Clip,food Liner Mount.(slides)		Appelez-nous	-
