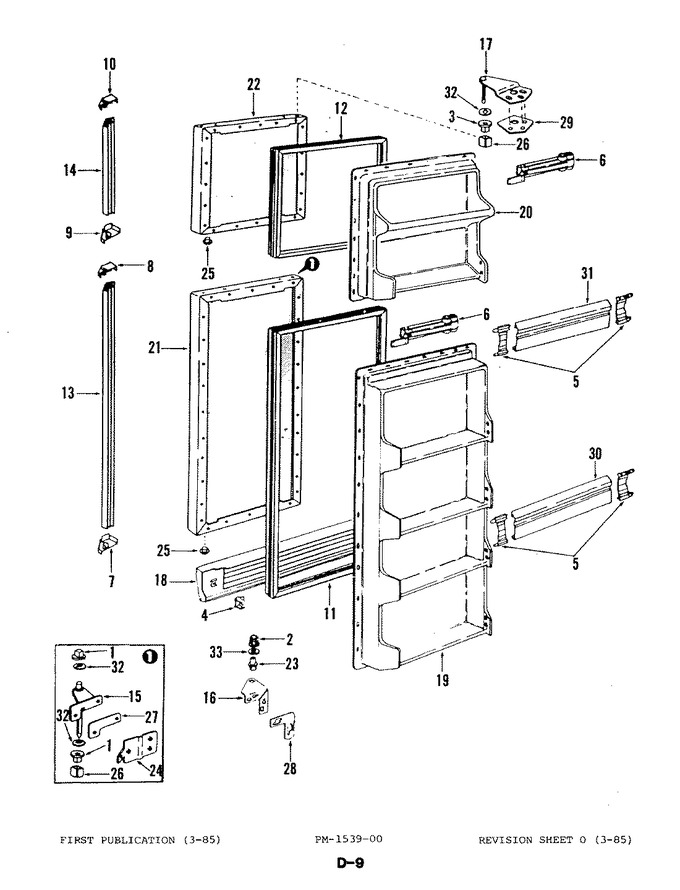

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55781-2		Bushing		Appelez-nous	-
1	52614-1		Bracket, Closer		Appelez-nous	-
2	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
3	55781-1		Bushing		Appelez-nous	-
4	52854-3		Clip, Kickplate		Appelez-nous	-
5	65246-1		Retainer				$ 5.04
6	54485-1		Closer, Door		Appelez-nous	-
7	57947-1		End Cap		Appelez-nous	-
8	57947-2		End Cap		Appelez-nous	-
9	57947-2		End Cap		Appelez-nous	-
10	57947-1		End Cap		Appelez-nous	-
11	53712-15		Gasket		Appelez-nous	-
12	53712-8		Gasket		Appelez-nous	-
13	56835-32		Handle		Appelez-nous	-
14	56835-33		Handle		Appelez-nous	-
15	54390-6		Hinge		Appelez-nous	-
16	53671-11		Hinge		Appelez-nous	-
17	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
17	52613-1		Insulation, Closer		Appelez-nous	-
18	56477-8		Kickplate		Appelez-nous	-
19	59433-110		Inner Panel		Appelez-nous	-
20	59433-113		Inner Panel		Appelez-nous	-
21	55583-45-AM		Outer Panel		Appelez-nous	-
22	55583-28-AM		Panel, Door		Appelez-nous	-
23	53672-1		Pin, Lower Hinge		Appelez-nous	-
24	54031-2		Tapping Plate		Appelez-nous	-
25	9986-110		Screw		Appelez-nous	-
25	402077-7		Screw		Appelez-nous	-
25	9986-12		Screw,door Liner		Appelez-nous	-
25	403062-5		Screw		Appelez-nous	-
25	402100-1		Screw		Appelez-nous	-
25	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
25	495034-900		Plug Button, Door		Appelez-nous	-
26	55990-1		Seal Sleeve		Appelez-nous	-
27	54386-4		Spacer		Appelez-nous	-
28	53688-3		Spacer		Appelez-nous	-
29	65031-1		Shim, Upper Hinge		Appelez-nous	-
30	59258-45		Trim		Appelez-nous	-
31	59258-47		Trim		Appelez-nous	-
31	420063-1		Washer		Appelez-nous	-
32	52185-2		Washer		Appelez-nous	-
33	54233-2		Washer		Appelez-nous	-
