Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3916525 Panel Freezer-white Appelez-nous -
2 5308000184 Plug-button-white (2) Special Order $ 8.87

3 5308012007 Bearing, Hinge (8) Appelez-nous -
4 3016493 Handle-white Special Order $ 88.88

5 08002748 Screw Appelez-nous -
6 3916530 Panel-refr-white Appelez-nous -
7 218730603 Gasket - Refr   (Replaces: 5303001517) Special Order $ 62.07

8 240494001 Plug Button, White (8)   (Replaces: 5308000090) In-Stock Immediately $ 18.20

9 5308013645 Screw, Handle (4) Appelez-nous -
10 5303001399 Gasket-freezer Appelez-nous -
11 G176904-01 Panel-freezer Inner Appelez-nous -
12 G490079-16 Rack-freezer Appelez-nous -
13 5317689101 Support-rack Rh (3) Appelez-nous -
14 5317689201 Support-rack Lh (3) Appelez-nous -
15 G176988-01 Panel-inner Refr Appelez-nous -
16 G176911-01 Door-dairy Appelez-nous -
17 5317722001 Rack-refrigerator Appelez-nous -
18 5317722101 Support-rack Rh Appelez-nous -
19 5317722201 Support-rack Lh Appelez-nous -
20 5349007917 Rack-refrigerator (2) Appelez-nous -

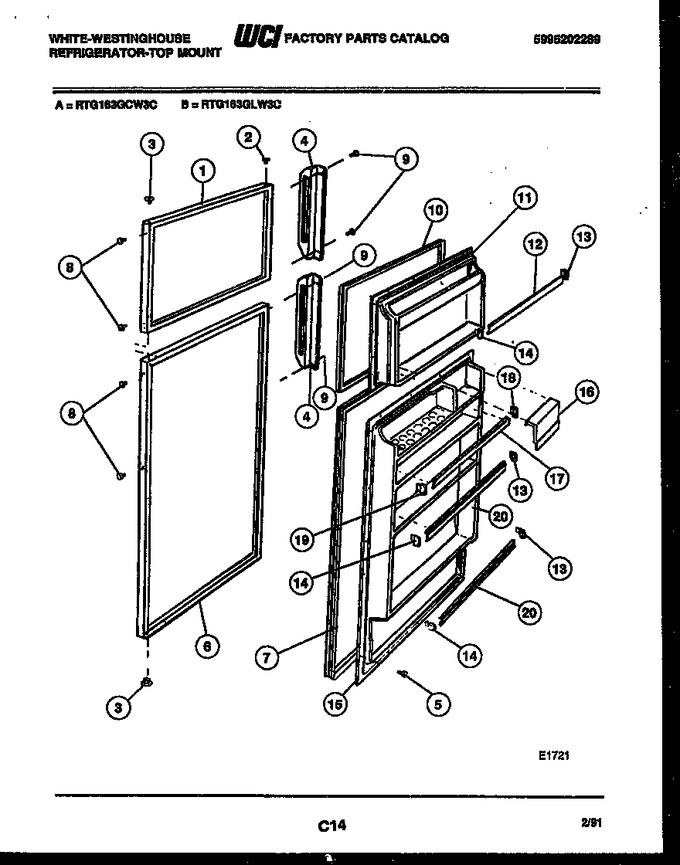

    View Diagram in Separate Window     Print Icon   Print Part List
