02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

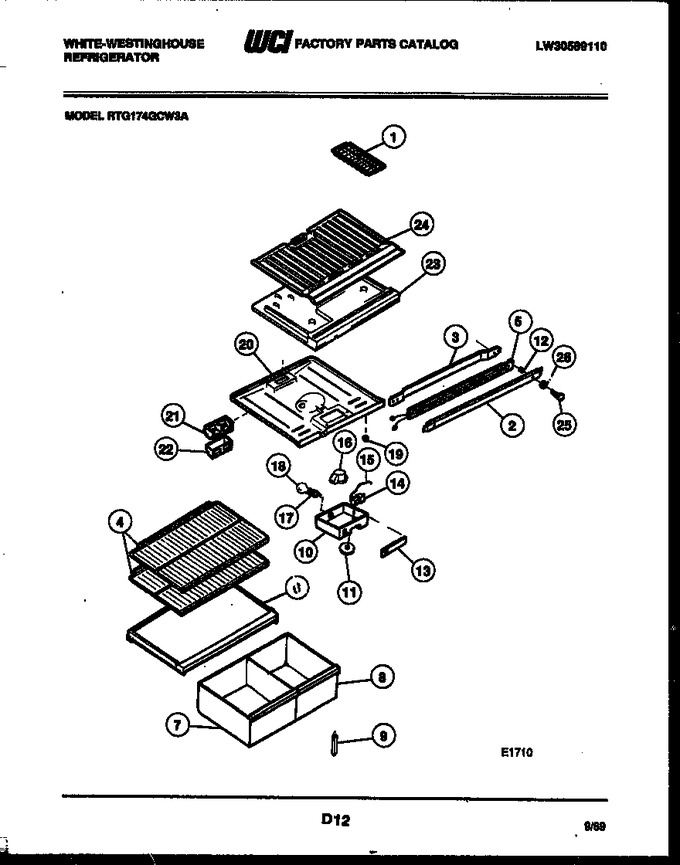

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001324 | Ice Tray (2) |
|
- | |||||
| 2 | 3916134 | Mullion-almond |
|
- | |||||
| 3 | G166709 | Strap-mullion Mtg |
|
- | |||||
| 4 | G179415-01 | Shelf-refrigerator (2) |
|
- | |||||
| 5 | 08017408 | Heater-mullion |
|
- | |||||
| 6 | G490016-03 | Cover-pan |
|
- | |||||
| 7 | G490015-01 | Pan-ls Crisper |
|
- | |||||
| 8 | G490015-01 | Pan-rs Crisper |
|
- | |||||
| 9 | G166310-02 | Support-pan Cover |
|
- | |||||
| 10 | G174765-03 | Control Box |
|
- | |||||
| 11 | G174759-01 | Knob-temp Control |
|
- | |||||
| 12 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 13 | 3205689 | Label-control Box |
|
- | |||||
| 14 | 3200810 | Control-temperature |
|
- | |||||
| 15 | 08037932 | Sleeve-plastic Tube |
|
- | |||||
| 16 | G187484 | Timer-defrost |
|
- | |||||
| 17 | G168302 | Light Socket |
|
- | |||||
| 18 | 3001179 | Light Bulb |
|
- | |||||
| 19 | 09918806 | Light Switch |
|
- | |||||
| 20 | 3016378 | Top-refrigerator |
|
- | |||||
| 21 | G162675 | Air Deflector |
|
- | |||||
| 22 | G162178 | Cover, Deflector |
|
- | |||||
| 23 | G176774 | Divider-styrofoam |
|
- | |||||
| 24 | G490022-01 | Bottom, Freezer |
|
- | |||||
| 25 | G183103 | Screw-mullion (4) |
|
- | |||||
| 26 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10A | G187363 | Screw |
|
- | |||||
| 10B | 3001670 | Switch-energy Saver (non-illustrated) |
|
- | |||||
| 14A | G107080 | Screw |
|
- | |||||
| 16A | G105289 | Screw |
|
- | |||||
| 20A | G162673 | Screw-top Mtg (3) (non-illustrated) |
|
- | |||||
| 23A | G174818 | Wiring Harness-divider (non-illustrated) |
|
- |
