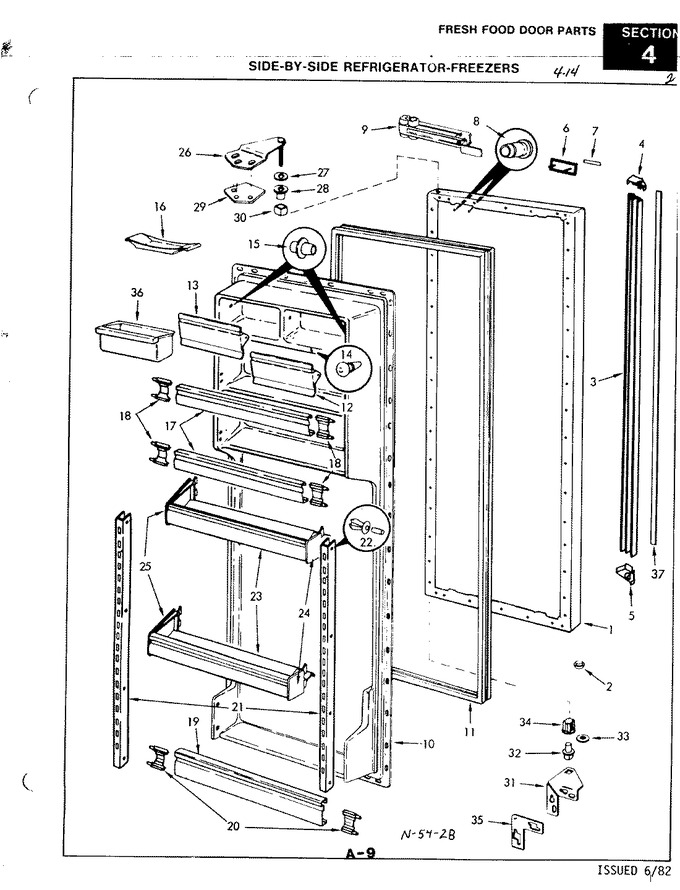

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 55587-26-AM | Outer Panel |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 420063-1 | Washer |
|
- | |||||
| 3 | 402100-1 | Screw |
|
- | |||||
| 3 | 56835-31 | Handle |
|
- | |||||
| 4 | 57947-1 | End Cap |
|
- | |||||
| 5 | 402077-7 | Screw |
|
- | |||||
| 5 | 57947-2 | End Cap |
|
- | |||||
| 6 | 63565-1 | Bezel |
|
- | |||||
| 7 | 63566-3 | Insert |
|
- | |||||
| 8 | 23511-4 | Mtg Clip |
|
- | |||||
| 9 | 52614-1 | Bracket, Closer |
|
- | |||||
| 9 | 54485-1 | Closer, Door |
|
- | |||||
| 10 | 9986-12 | Screw,door Liner |
|
- | |||||
| 10 | 59433-107 | Inner Panel |
|
- | |||||
| 11 | 53712-2 | Gasket |
|
- | |||||
| 12 | 59234-31 | Butter Door |
|
- | |||||
| 13 | 59234-30 | Cheese Door |
|
- | |||||
| 14 | 59615-2 | Bumper |
|
- | |||||
| 15 | 59325-1 | Pivot |
|
- | |||||
| 16 | 29936-2 | Tray, Butter |
|
- | |||||
| 17 | WP61003045 | Trim (Replaces: 64163-10) |
|
$ 129.55 | |||||
| 18 | WP65245-1 | Locking Clip (Replaces: 59313-1) |
|
$ 9.39 | |||||
| 19 | 59258-42 | Trim |
|
- | |||||
| 20 | 59316-1 | Retainer |
|
- | |||||
| 21 | 59994-11 | Rack |
|
- | |||||
| 22 | 59920-2 | Rivet |
|
- | |||||
| 23 | 62634-8 | Trim |
|
- | |||||
| 24 | 62138-1 | End Cap |
|
- | |||||
| 25 | 62138-2 | End Cap |
|
- | |||||
| 26 | 53709-16 | Upper Hinge,(chrome) |
|
- | |||||
| 26 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 27 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 28 | 55781-2 | Bushing |
|
- | |||||
| 29 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 30 | 55990-1 | Seal Sleeve |
|
- | |||||
| 31 | 53671-10 | Hinge |
|
- | |||||
| 31 | 403062-1 | Screw |
|
- | |||||
| 32 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 33 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 34 | 55437-1 | Bushing |
|
- | |||||
| 35 | 53688-3 | Spacer |
|
- | |||||
| 36 | 58368-12 | Egg Bucket |
|
- | |||||
| 37 | 59309-36 | Trim |
|
- |
