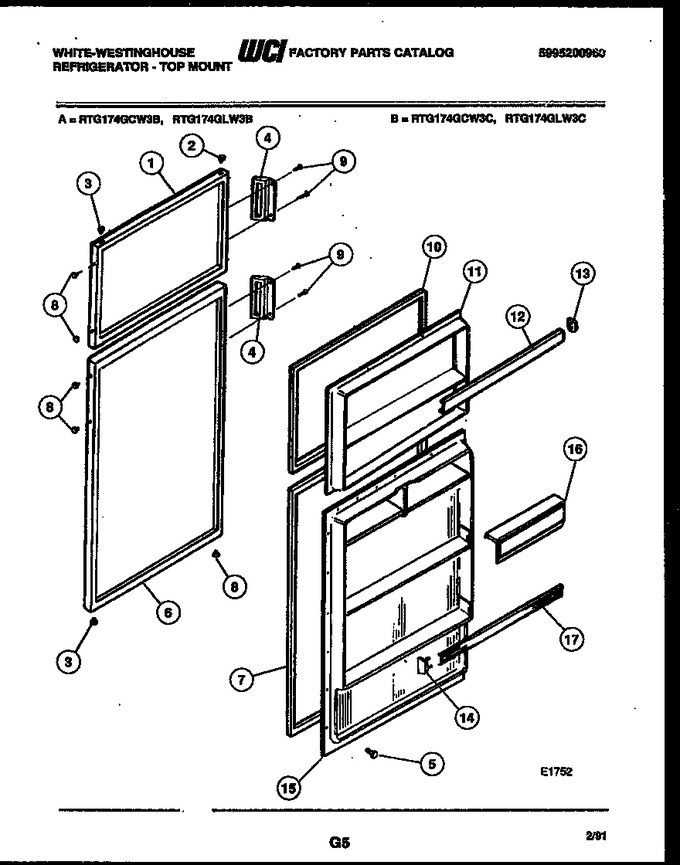

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3916550 | Panel Freezer-coffee |
|
- | |||||
| 2 | 5303001657 | Plug Button - Coffee (2) |
|
- | |||||
| 3 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 4 | 3016495 | Handle-coffee |
|
- | |||||
| 5 | 08002748 | Screw |
|
- | |||||
| 6 | 3916555 | Panel-refr-coffee |
|
- | |||||
| 7 | 218730603 | Gasket - Refr (Replaces: 5303001517) |
|
$ 62.07 | |||||
| 8 | 5308000178 | Plug Button, Coffee (8) |
|
- | |||||
| 9 | 5308013645 | Screw, Handle (4) |
|
- | |||||
| 10 | 5303001399 | Gasket-freezer |
|
- | |||||
| 11 | G185509-02 | Panel-freezer Inner |
|
- | |||||
| 12 | 3206069 | Rack-freezer (2) |
|
- | |||||
| 13 | 5303007295 | Support-rack Rh (4) |
|
$ 32.55 | |||||
| 14 | 5303007297 | Support-rack Lh (4) |
|
$ 64.58 | |||||
| 15 | G185508-02 | Panel-inner Refr |
|
- | |||||
| 16 | G178500-09 | Door-dairy-large |
|
- | |||||
| 17 | 3206074 | Rack-refrigerator (2) |
|
- | |||||
| *42379 | 5303212925 | Tray-egg |
|
- | |||||
| *42379 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| *42380 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 16A | G178501-06 | Door-dairy-small (non-illustrated) |
|
- |
