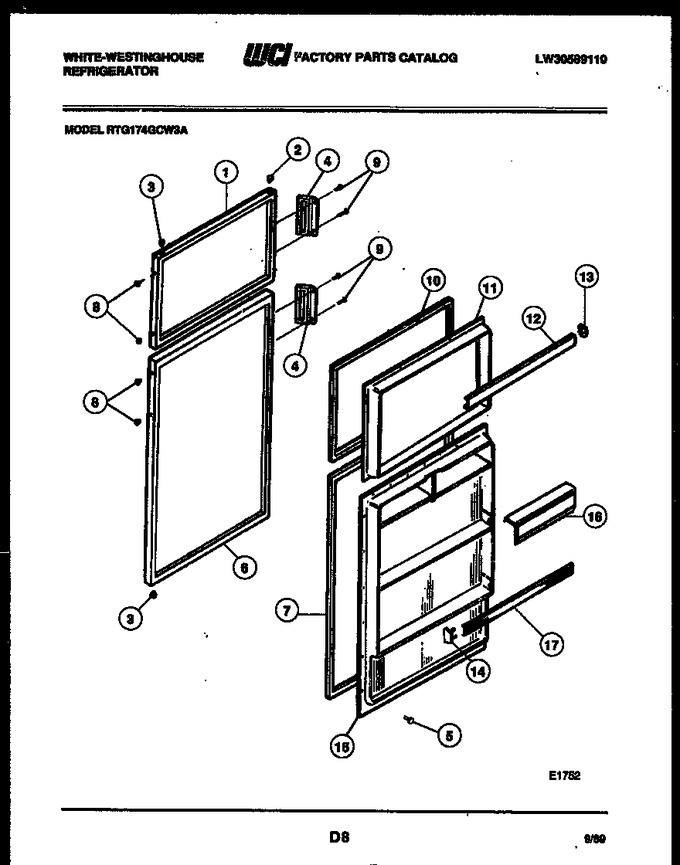

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3916548 | Panel Freezer-avoc |
|
- | |||||
| 2 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 3 | G183138 | Bearing Hinge (8) |
|
- | |||||
| 4 | 3205586 | Handle-avocado |
|
- | |||||
| 5 | 3001001 | Screw-panel (56) |
|
- | |||||
| 6 | 3916553 | Panel-refr-avocado |
|
- | |||||
| 7 | G186932-11 | Gasket-refr |
|
- | |||||
| 8 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 9 | G184795 | Screw-handle (4) |
|
- | |||||
| 10 | G186932-03 | Gasket-freezer |
|
- | |||||
| 11 | G185509-02 | Panel-freezer Inner |
|
- | |||||
| 12 | 3206069 | Rack-freezer (2) |
|
- | |||||
| 13 | 3007295 | Support-rack Rh (4) |
|
- | |||||
| 14 | 3007297 | Support-rack Lh (4) |
|
- | |||||
| 15 | G185508-02 | Panel-inner Refr |
|
- | |||||
| 16 | G178500-09 | Door-dairy Rs Large |
|
- | |||||
| 17 | 3206074 | Rack-refrigerator (2) |
|
- | |||||
| *21712 | G161079 | Dish, Butter |
|
- | |||||
| *21712 | G172885-04 | Tray-egg |
|
- | |||||
| 16A | G178501-06 | Door-dairy Small Ls (non-illustrated) |
|
- |
