Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303269930 Cap-end Lh Appelez-nous -
2 5303269927 Trim-bottom Appelez-nous -
3 5303269931 Cap-end Rh Appelez-nous -
4 5303269928 Trim-vent Appelez-nous -
5 5303269932 Cap-end (2) Appelez-nous -
6 5303269957 Panel-top Appelez-nous -
7 08067732 Cover-outlet Appelez-nous -
8 5303270071 Panel-base Appelez-nous -
9 3051264 Panel-side Upper Rh Almond Appelez-nous -
9 5303269989 Panel-side Upper Lh Almond Appelez-nous -
9 3051263 Panel-side Upper Rh White Appelez-nous -
10 5303271601 Duct-air Foam Appelez-nous -
11 08010551 Plug Kit Appelez-nous -
13 5303269929 Trim-side Appelez-nous -
14 5303269936 Channel-slide (2) Appelez-nous -
15 5303269937 Channel-micro Slide (2) Appelez-nous -
16 5303272678 Cover-rear Access Appelez-nous -
17 5303269947 Duct-air Foam (2) Appelez-nous -
18 5303269986 Cover-vent Back Appelez-nous -
19 5303270097 Support-top Corner Appelez-nous -
9A 5303269987 Panel-side Upper Lf White Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

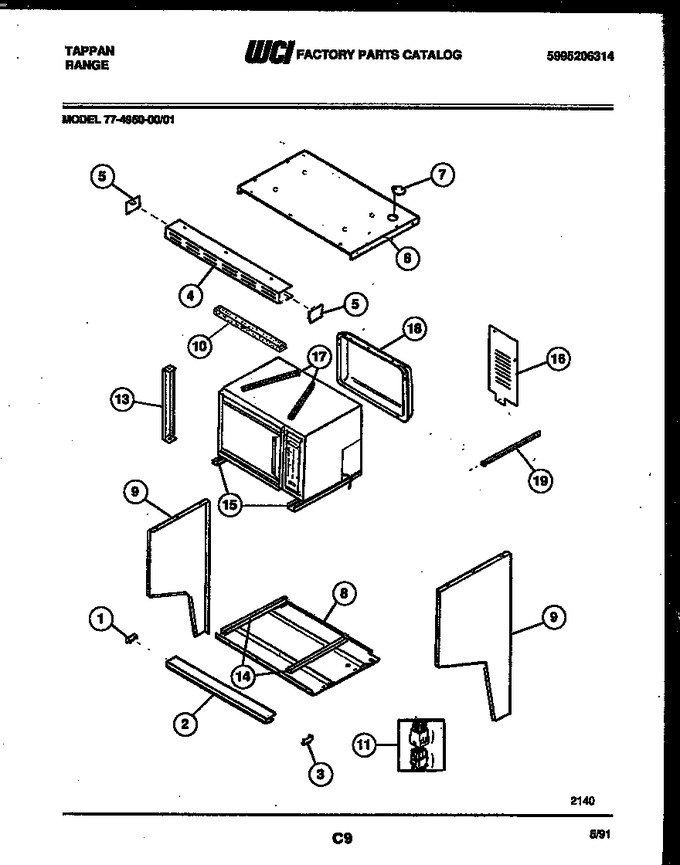

Diagram for 77-4950-00-01
