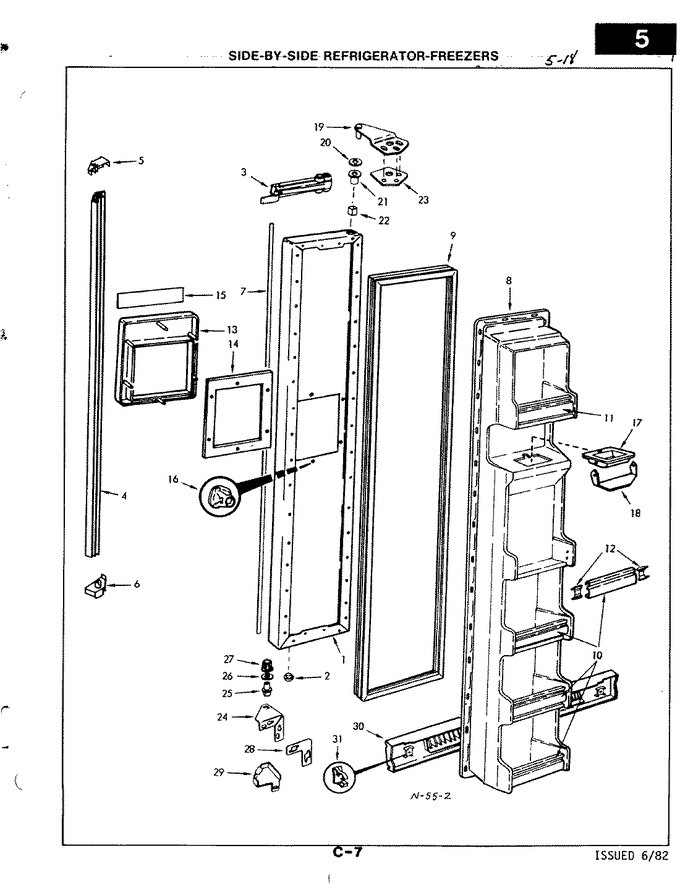

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63069-6-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
4	420063-1		Washer		Appelez-nous	-
4	402100-1		Screw		Appelez-nous	-
4	56835-31		Handle		Appelez-nous	-
5	57947-2		End Cap		Appelez-nous	-
6	57947-1		End Cap		Appelez-nous	-
6	402077-7		Screw		Appelez-nous	-
7	59309-36		Trim		Appelez-nous	-
8	59433-92		Inner Panel		Appelez-nous	-
8	9986-12		Screw,door Liner		Appelez-nous	-
9	53712-1		Gasket		Appelez-nous	-
10	59258-43		Trim		Appelez-nous	-
11	59258-44		Trim		Appelez-nous	-
12	59316-1		Retainer		Appelez-nous	-
13	60482-7		Escutcheon		Appelez-nous	-
14	63057-1		Seal, Escutcheon		Appelez-nous	-
15	64112-7		Insert		Appelez-nous	-
16	29356-1		Retainer, Nameplate		Appelez-nous	-
17	63020-3		Collar		Appelez-nous	-
18	63075-1		Door, Ice Chute		Appelez-nous	-
19	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	52185-2		Washer		Appelez-nous	-
21	55781-1		Bushing		Appelez-nous	-
22	55990-1		Seal Sleeve		Appelez-nous	-
23	65031-1		Shim, Upper Hinge		Appelez-nous	-
24	53671-15		Hinge		Appelez-nous	-
24	403062-5		Screw		Appelez-nous	-
25	55479-1		Pin		Appelez-nous	-
26	54233-2		Washer		Appelez-nous	-
27	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
28	53688-3		Spacer		Appelez-nous	-
29	53815-11		Cover		Appelez-nous	-
30	56478-27		Kickplate		Appelez-nous	-
31	52854-3		Clip, Kickplate		Appelez-nous	-
