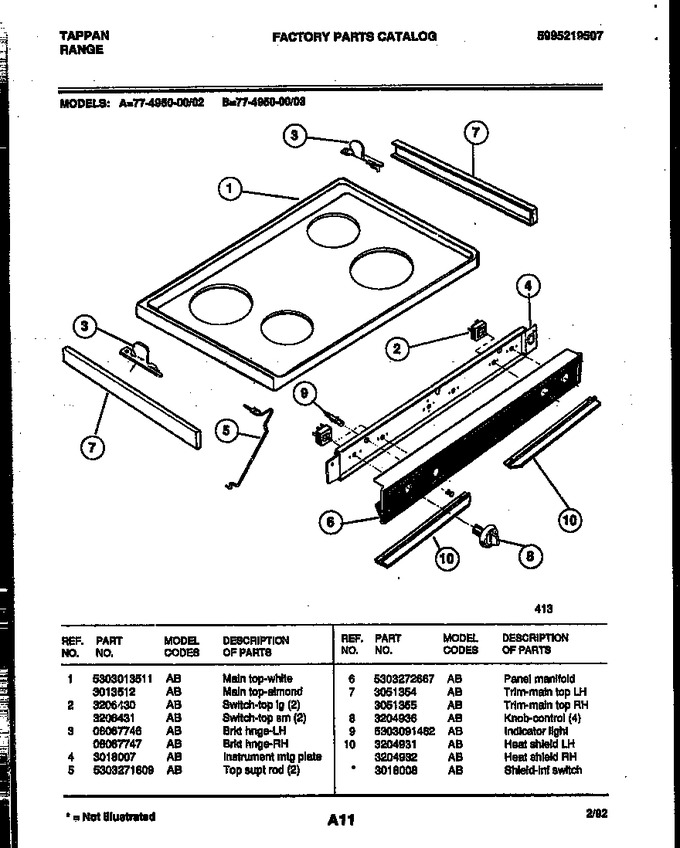

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303013511 | Main Top (white) |
|
- | |||||
| 2 | 3206430 | Switch-top Lg (2) |
|
- | |||||
| 3 | 08067746 | Brkt Hnge-lh |
|
- | |||||
| 4 | 3018007 | Instrument Mtg Plate |
|
- | |||||
| 5 | 5303271609 | Top Supt Rod (2) |
|
- | |||||
| 6 | 5303272667 | Panel Manifold |
|
- | |||||
| 7 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 8 | 3204936 | Knob-control (4) |
|
- | |||||
| 9 | 5303091462 | Indicator Light |
|
- | |||||
| 10 | 3204931 | Heat Shield Lh |
|
- | |||||
| *65839 | 3018008 | Shield-inf Switch |
|
- | |||||
| 10A | 3204932 | Heat Shield Rh |
|
- | |||||
| 2A | 3206431 | Switch-top Sm (2) |
|
- | |||||
| 3A | 08067747 | Brkt Hnge-rh |
|
- | |||||
| 7A | 3051355 | Trim, Main Top (rh) |
|
- |
