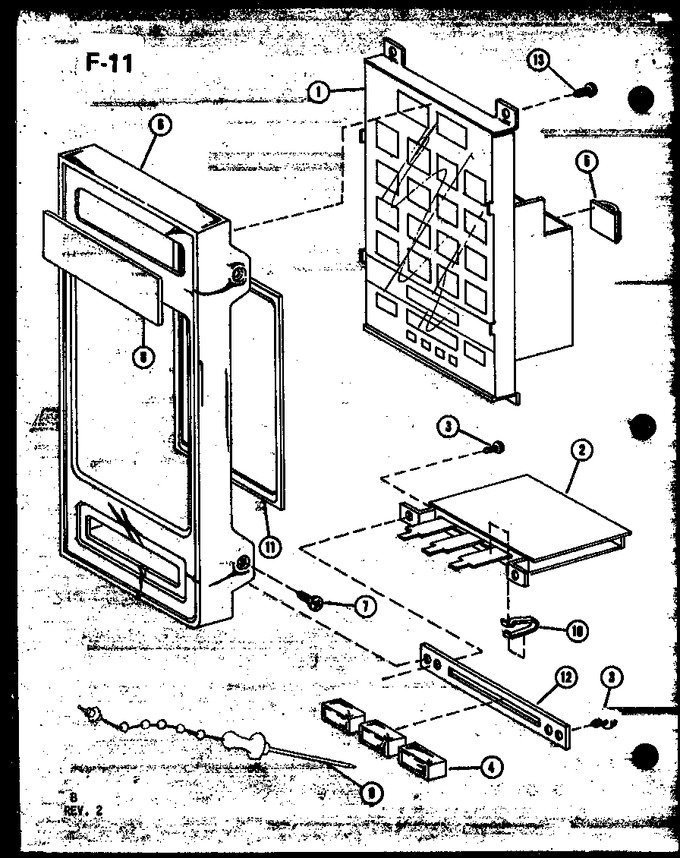

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7442710 | Net-assy,module |
|
- | |||||
| 1 | D7445201 | Net-assy,module |
|
- | |||||
| 2 | C8787803 | Switch Ssl K |
|
- | |||||
| 3 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 4 | C8869301 | Light Button |
|
- | |||||
| 4 | C8869401 | Stop Button |
|
- | |||||
| 4 | C8869501 | Start Button |
|
- | |||||
| 5 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 6 | D7569501 | Escutch, Control |
|
- | |||||
| 7 | WP8281236 | Screw (counter Sunk) (Replaces: M0215704) |
|
$ 6.80 | |||||
| 8 | A1038701 | Nameplate |
|
- | |||||
| 9 | C8821503 | Temp Probe |
|
- | |||||
| 10 | A1039301 | Spring |
|
- | |||||
| 11 | C8776701 | Gasket |
|
- | |||||
| 12 | B8327701 | Switch Mtg Brk |
|
- | |||||
| 13 | M0234016 | Screw |
|
- |
