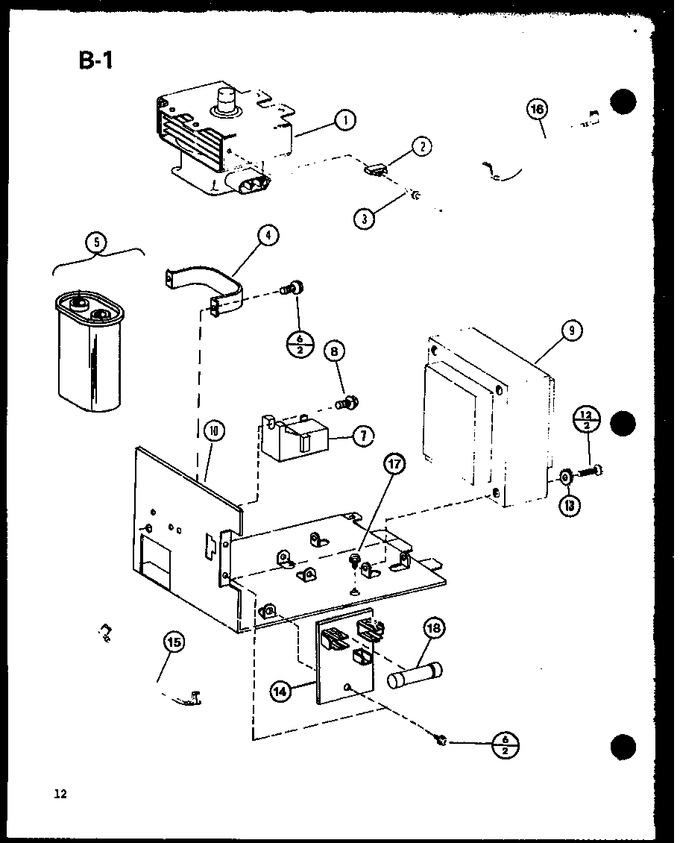

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8761711 | Magnetron |
|
- | |||||
| 2 | B5795302 | Thermal Cut Out |
|
- | |||||
| 3 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 4 | A3257002 | Strap-capacitor |
|
- | |||||
| 5 | 59001651 | Capacitor (Replaces: D8547901) |
|
$ 43.15 | |||||
| 6 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 7 | B8329801 | Kit, Diode |
|
- | |||||
| 8 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 9 | D7391403 | Transformer Kit |
|
- | |||||
| 10 | D7442104 | Xfmr Mtg Plate |
|
- | |||||
| 12 | M0254452 | Screw |
|
- | |||||
| 13 | M0272805 | Lock Washer |
|
- | |||||
| 14 | C8845901 | Terminal Board K |
|
- | |||||
| 15 | D7292676 | Jumper Wire |
|
- | |||||
| 15 | D7292655 | Jumper Wire |
|
- | |||||
| 16 | D7384635 | Wire Jumper |
|
- | |||||
| 16 | D7292635 | H.v. Wire, Filament Trans. Tem |
|
- | |||||
| 17 | YM0258229 | Sems Fastener |
|
- | |||||
| 18 | WPM0805102 | Fuse 15 Amp (Replaces: M0805102) |
|
$ 21.25 |
