02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

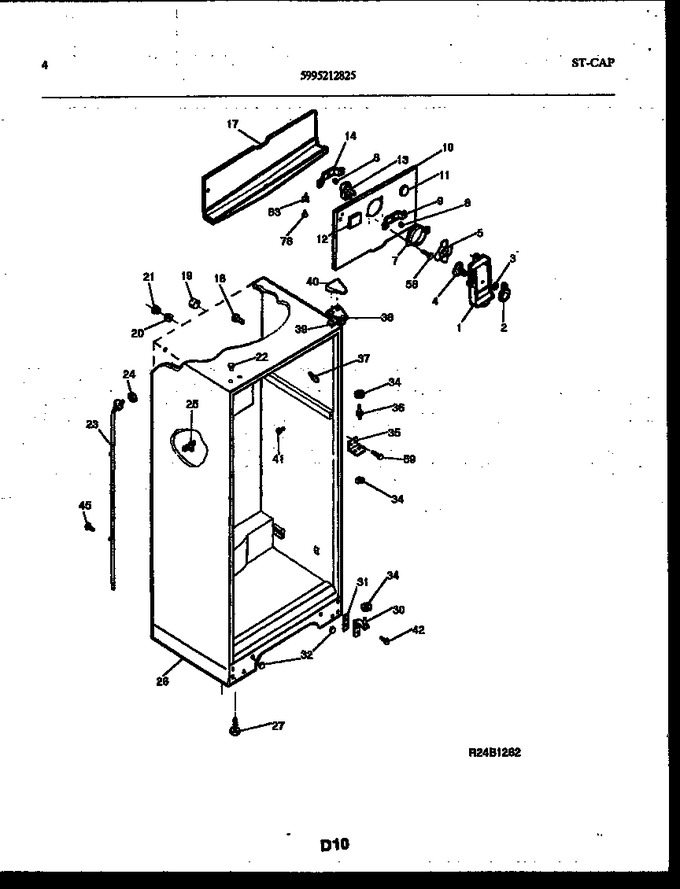

| 1 | 5303281380 | Cover-fan |
|
- | |||||
| 1 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 2 | 5308000081 | Knob - Damper Control |
|
$ 36.02 | |||||
| 3 | 5303001028 | Nut, Push |
|
- | |||||
| 4 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 5303209814 | Nut, ``u`` Type, No. 8(a), Evap Cover, (2) (non-illustrated) |
|
- | |||||
| 10 | 5308013665 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 5308013636 | Plug, Decorative, Ice Maker Hole |
|
- | |||||
| 13 | 5300158289 | Motor-fan (Replaces: 5303275816) |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 5303001470 | Drain Trough |
|
- | |||||
| 18 | 5308000097 | Support, Evap Cover, (2) |
|
- | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 20 | 5303001286 | Ferrule-inner |
|
- | |||||
| 21 | 5303001287 | Ferrule-outer |
|
- | |||||
| 22 | 5303001388 | Plug-button, White, Upr Hinge Holes |
|
$ 2.60 | |||||
| 23 | 5303210377 | Drain Tube, W/ Seal Ring |
|
$ 109.31 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 26 | 5303212487 | Base-cabiner |
|
- | |||||
| 27 | 5303212922 | Screw-leveling |
|
$ 10.71 | |||||
| 30 | 5303212489 | Bracket-lower Hinge, W/ Hinge Pin |
|
- | |||||
| 30 | 5303212596 | Tapping Plate/gusset, Lh (non-illustrated) |
|
- | |||||
| 30 | 5303212597 | Tapping Plate/gusset, Rh (non-illustrated) |
|
- | |||||
| 31 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 32 | 5303212923 | Plug-button, Cabinet Base, (2) |
|
- | |||||
| 34 | 5308000186 | Washer, .34 X .62 X .10, Nylon |
|
Immediately | $ 6.02 | ||||
| 35 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202336 | Trim, Cabinet Corner, White, (4) |
|
- | |||||
| 38 | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 | |||||
| 38 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 38 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 41 | 5304500407 | Grommet, Shelf Mtg, Lh (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 41 | 5304509705 | Grommet, Shelf Mtg (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 42 | 5303001320 | Screw-hng/gusset Mtg, Hx Wshr Hd Mach, 1/4-20 X 5/8, (6) |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 58 | 530800278 | Screw, Spcl Hx Wshr Hd, 8(a) X 1/2 |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 78 | 5303210353 | Screw-connector Brkt, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 54284 | 5308016571 | Plug-button, Liner |
|
$ 4.79 | |||||
| *54281 | 5303001361 | Pin-push, Drain Spout, (2) |
|
- |
