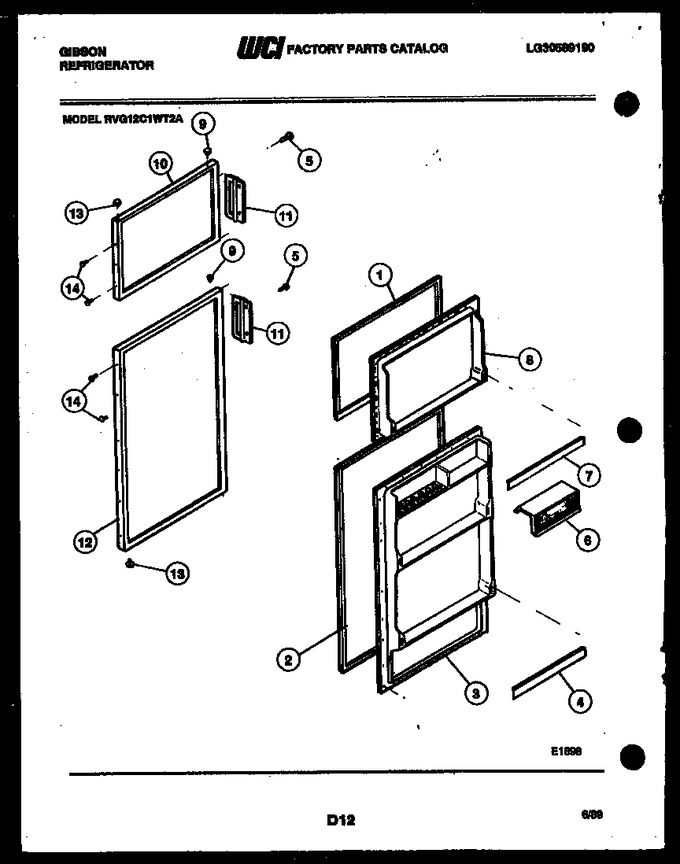

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-05		Gasket-freezer Door		Appelez-nous	-
2	G186932-04		Gasket-refr Door		Appelez-nous	-
3	G165701-02		Inner Panel-refr		Appelez-nous	-
4	3001303		Door Rack-refr (2)		Appelez-nous	-
5	G184795		Screw-handle Mtg (4)		Appelez-nous	-
6	G163222-35		Butter Door		Appelez-nous	-
7	3205582		Door Rack-frzr		Appelez-nous	-
8	G165702-02		Inner Panel-freezer		Appelez-nous	-
9	G169332-09		Button Plug, Wheat		Appelez-nous	-
9	G169332-01		Button Plug, White		Appelez-nous	-
9	G169332-11		Button Plug, Almond		Appelez-nous	-
9	G169332-10		Button-plug, Coffee		Appelez-nous	-
9	G169332-08		Button Plug-avocado		Appelez-nous	-
10	3916506		Freezer Door-avoc		Appelez-nous	-
10	3916508		Freezer Door-coffee		Appelez-nous	-
10	3916507		Freezer Door-wheat		Appelez-nous	-
10	3916509		Freezer Door-almond		Appelez-nous	-
10	3916505		Freezer Door-white		Appelez-nous	-
11	3205586		Handle-avocado		Appelez-nous	-
11	3016494		Handle-wheat		Appelez-nous	-
11	3016493		Handle-white				$ 88.88
11	3016496		Handle-almond		Appelez-nous	-
11	3016495		Handle-coffee		Appelez-nous	-
12	3916511		Refr Door-avocado		Appelez-nous	-
12	3916512		Refr Door-wheat		Appelez-nous	-
12	3916513		Refr Door-coffee		Appelez-nous	-
12	3916514		Refr Door-almond		Appelez-nous	-
12	3916510		Refr Door-white		Appelez-nous	-
13	G183138		Hinge Bearing (8)		Appelez-nous	-
14	G162977-11		Button Plug-almond		Appelez-nous	-
14	G162977-01		Button Plug-white		Appelez-nous	-
14	G162977-08		Button Plug-avocado		Appelez-nous	-
14	G162977-09		Button Plug-wheat		Appelez-nous	-
14	G162977-10		Button Plug-coffee		Appelez-nous	-
*19314	G89643		Insulation-door (bulk)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
8A	G162585		Screw		Appelez-nous	-
