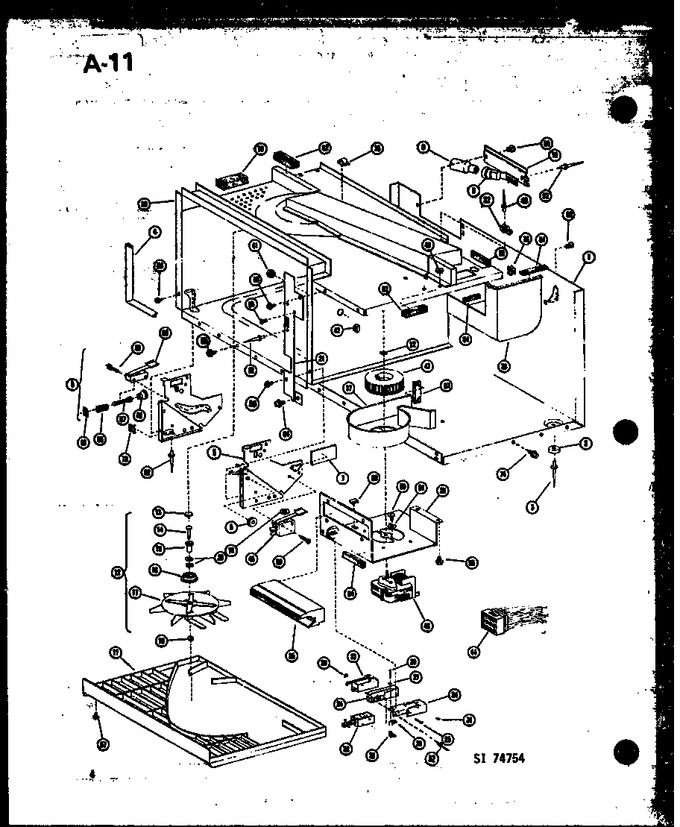

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7351705		Base Pan		Appelez-nous	-
2	B5732505		Foot		Appelez-nous	-
3	A4539619		Pop Rivet		Appelez-nous	-
4	C3537201		Overload		Appelez-nous	-
5	D7482003		Ctr Brkt Assy		Appelez-nous	-
5	D7482001		Ctr Brkt Assy - Right		Appelez-nous	-
6	R0157145		Roller Assy Kit		Appelez-nous	-
7	M0050902		X$x Pad		Appelez-nous	-
8	B5784001		Socket		Appelez-nous	-
9	A3167501		Bulb Q				$ 28.47
10	B5782901		Panel		Appelez-nous	-
11	D7449001		Grease Shield		Appelez-nous	-
12	C8806701		Assy, Antenna		Appelez-nous	-
13	B5792601		Bearing Cap		Appelez-nous	-
14	B5783101		Stub-antenna A		Appelez-nous	-
15	B5783001		Bearing-antenna A		Appelez-nous	-
16	C8838501		Bushing A		Appelez-nous	-
17	R0183053		Assy, Antenna		Appelez-nous	-
18	M0281203		Nut A		Appelez-nous	-
20	D7364803		Plate		Appelez-nous	-
21	D7365505		Flange-oven Cav		Appelez-nous	-
22	B5795303		Fuse, Thermal		Appelez-nous	-
23	M0274044		Washer		Appelez-nous	-
24	B8311201		Spring Latch-		Appelez-nous	-
25	M0202521		Screw		Appelez-nous	-
26	B5672502		Bell Crank		Appelez-nous	-
27	M0270530		Washer		Appelez-nous	-
28	B5672503		Bell Crank		Appelez-nous	-
29	A3182602		Pin-bell Crank		Appelez-nous	-
30	M0282005		Nut K				$ 7.07
31	M0201414		Screw		Appelez-nous	-
32	B5682106		Door Locking Solenoid		Appelez-nous	-
33	A3163412		Switch Preform A		Appelez-nous	-
34	C8845301		Bracket Latch K		Appelez-nous	-
35	D7370701		Escutcheon-duct		Appelez-nous	-
36	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
37	C8797201		Blower Scroll		Appelez-nous	-
38	D7349002		Magnetron Cover		Appelez-nous	-
39	D7350506		Oven Weld.		Appelez-nous	-
40	A4539620		Pop Rivets		Appelez-nous	-
41	A3275701		Nut-decorative		Appelez-nous	-
42	A3275602		Jack Assembly		Appelez-nous	-
44	D7477201		Wiring Harness		Appelez-nous	-
46	C8793201		Motor		Appelez-nous	-
47	C8793501		Blower Wheel		Appelez-nous	-
48	C8736705		Interlock Switch		Appelez-nous	-
49	M0282801		Lock-nut---k		Appelez-nous	-
50	M0202842		Screw		Appelez-nous	-
51	M0272605		Washer		Appelez-nous	-
52	A4539601		Pop Rivet		Appelez-nous	-
53	M0227525		Screw A-k		Appelez-nous	-
54	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
55	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
56	A3030302		Gasket		Appelez-nous	-
57	M0213815		Screw		Appelez-nous	-
58	M0216517		Screw		Appelez-nous	-
59	M0217514		Screw		Appelez-nous	-
60	M0113501		Clip		Appelez-nous	-
62	A3030303		Gasket (per Foot)		Appelez-nous	-
63	A3030308		Gasket		Appelez-nous	-
64	A3030309		Gasket (per Foot)		Appelez-nous	-
65	A3277701		Spring A		Appelez-nous	-
66	A3277801		Guide Screw A-k		Appelez-nous	-
67	A3277601		Screw Adjusting A-k		Appelez-nous	-
68	A3162510		Switch-l Intl A		Appelez-nous	-
69	M0286114		Speed Nut A		Appelez-nous	-
70	A3145101		Washer K		Appelez-nous	-
72	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
73	B5667302		Clip		Appelez-nous	-
74	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
76	M0288213		Clip		Appelez-nous	-
