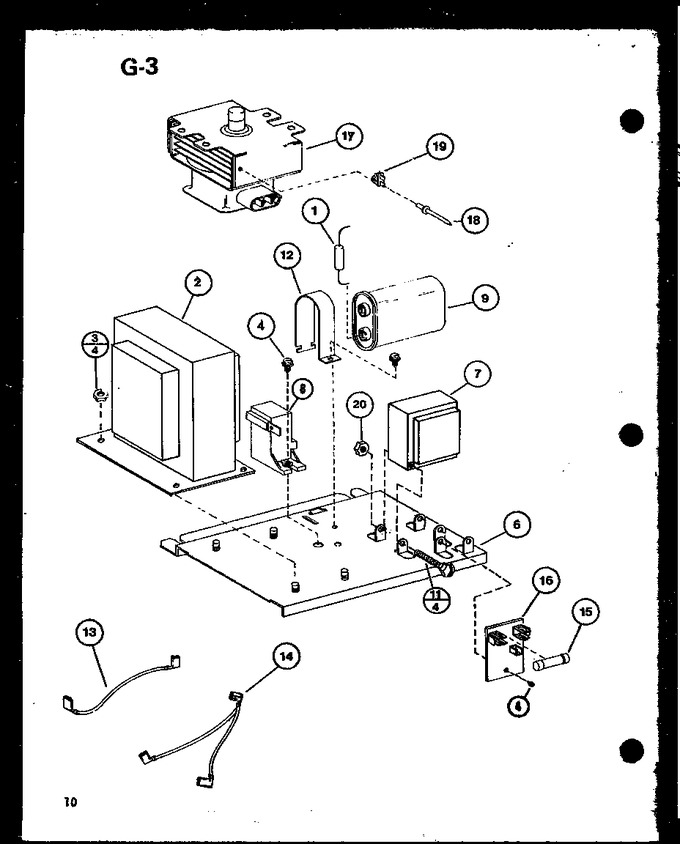

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A1001901 | Resistor Assy |
|
- | |||||
| 2 | D7374904 | Transformer |
|
- | |||||
| 3 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 4 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 6 | D7422903 | Transformer Plate |
|
- | |||||
| 7 | C8798801 | Trans Filament |
|
- | |||||
| 8 | B8329801 | Kit, Diode |
|
- | |||||
| 9 | C8790510 | Oil-filled Capacitor |
|
- | |||||
| 11 | M0253509 | Screw |
|
- | |||||
| 12 | A3257001 | Strap-capacitor |
|
- | |||||
| 13 | D7292652 | Jumper Wire |
|
- | |||||
| 13 | D7292612 | H.v. Wire Jumper, Fuse Board, |
|
- | |||||
| 14 | D7292653 | Jumper Wire |
|
- | |||||
| 15 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) |
|
Immediately | $ 10.31 | ||||
| 16 | C8845901 | Terminal Board K |
|
- | |||||
| 17 | C8798602 | Kit, Magnetron |
|
- | |||||
| 18 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 19 | B5795304 | Fuse, Thermal |
|
- | |||||
| 20 | M0282005 | Nut K |
|
$ 7.07 |
