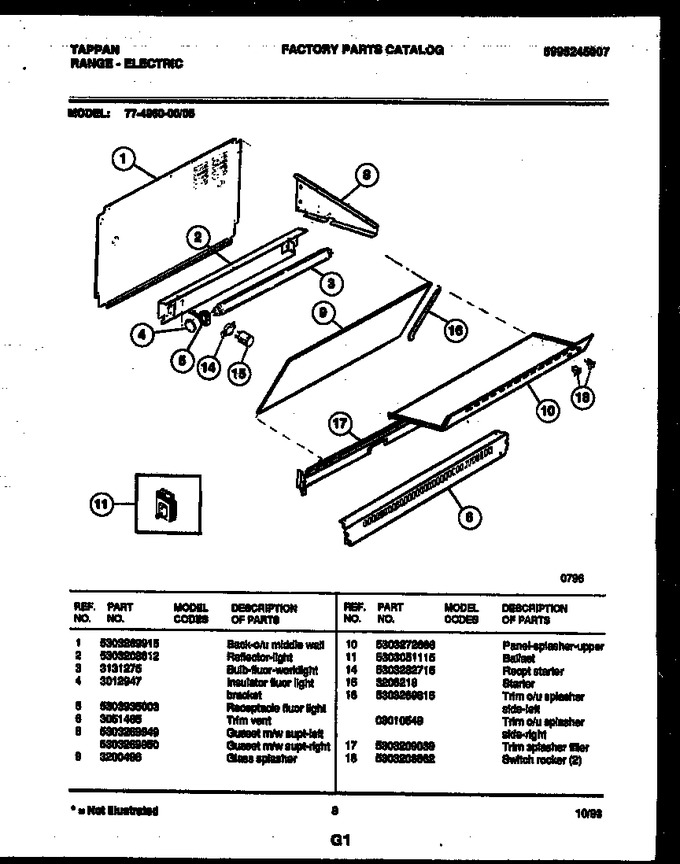

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303269915 | Back-o/u Middle Wall |
|
- | |||||
| 2 | 5303208612 | Reflector-light |
|
- | |||||
| 3 | 3131275 | Bulb, Fluor (work Light) |
|
$ 49.40 | |||||
| 4 | 3012947 | Insulator Fluor Light Bracket |
|
- | |||||
| 5 | 5303935003 | Receptacle Fluor Light |
|
- | |||||
| 6 | 3051465 | Trim Vent |
|
- | |||||
| 8 | 5303269949 | Gusset M/w Supt-left |
|
- | |||||
| 9 | 3200496 | Glass-splasher |
|
- | |||||
| 10 | 5303272666 | Panel-splasher-upper |
|
- | |||||
| 11 | 5303051115 | Ballast |
|
- | |||||
| 14 | 5303282715 | Recpt Starter |
|
- | |||||
| 15 | 3206218 | Starter |
|
$ 54.08 | |||||
| 16 | 5303269815 | Trim O/u Splasher Side-left |
|
- | |||||
| 17 | 5303209039 | Trim-splasher Filler |
|
- | |||||
| 18 | 5303208662 | Switch-rocker (2) |
|
- | |||||
| 16A | 08010549 | Trim O/u Splasher Side-right |
|
- | |||||
| 8A | 5303269950 | Gusset M/w Supt-right |
|
- |
