SELECT A DIAGRAM

01 - Exterior Parts


02 - Interior Parts

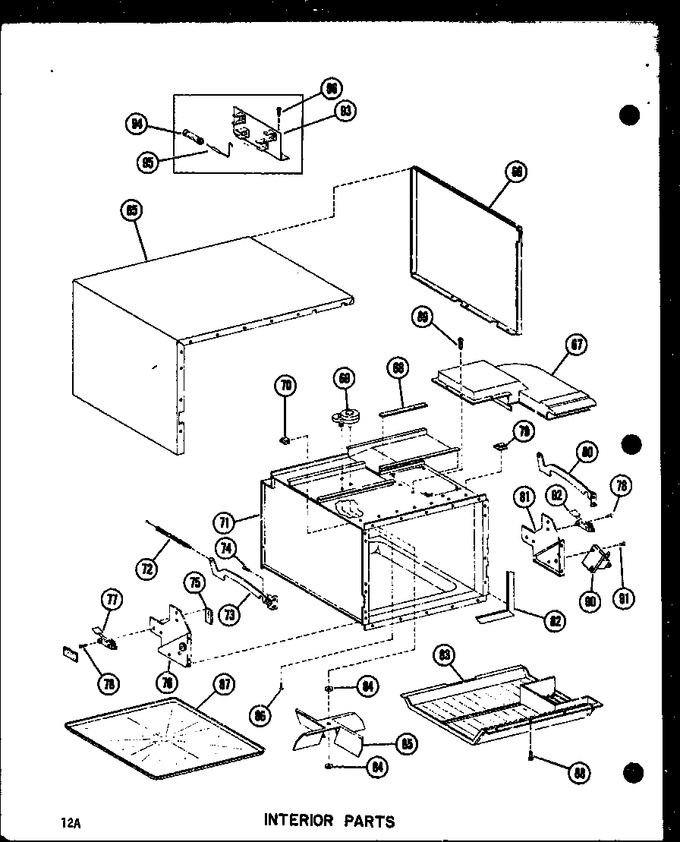

03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
65	C3688401		Wrapper, Outer Case		Appelez-nous	-
66	C3689601		Access Panel		Appelez-nous	-
67	D7106003		Duct, Air Discharge		Appelez-nous	-
68	A3030302		Gasket		Appelez-nous	-
69	B5602803		Motor		Appelez-nous	-
70	M0114901		Clip		Appelez-nous	-
71	D7168302		Weldment, Oven		Appelez-nous	-
72	M0775001		Spring		Appelez-nous	-
73	B5693102		Arm, Counterbalance, Left Hand		Appelez-nous	-
74	M0228015		Screw		Appelez-nous	-
75	M0050902		X$x Pad		Appelez-nous	-
76	B5693203		Bracket, Counterbalance, Left		Appelez-nous	-
77	A3162503		Switch, Interlock, Left Hand		Appelez-nous	-
78	M0227525		Screw A-k		Appelez-nous	-
79	M0104102		Clip, Cord				$ 8.10
80	B5693101		Arm, Counterbalance, R.h.		Appelez-nous	-
81	B5693204		Bracket, Counterbalance, Right		Appelez-nous	-
82	C3637201		Gasket		Appelez-nous	-
83	D7106201		Grease Shield		Appelez-nous	-
84	A3109101		Washer		Appelez-nous	-
85	C3609101		Fan Blade, Stirrer		Appelez-nous	-
86	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
87	D7089602		Oven Tray Kit		Appelez-nous	-
88	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
89	M0230015		Screw		Appelez-nous	-
90	B5688701		Relay, Time Delay		Appelez-nous	-
91	M0234117		Screw		Appelez-nous	-
92	A3162503		Switch, Interlock, Left Hand		Appelez-nous	-
93	B5722001		Terminal Board A		Appelez-nous	-
94	M0305401		Resistor Fuse Kit		Appelez-nous	-
95	M0308101		Fuse				$ 9.87
96	M0230015		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
