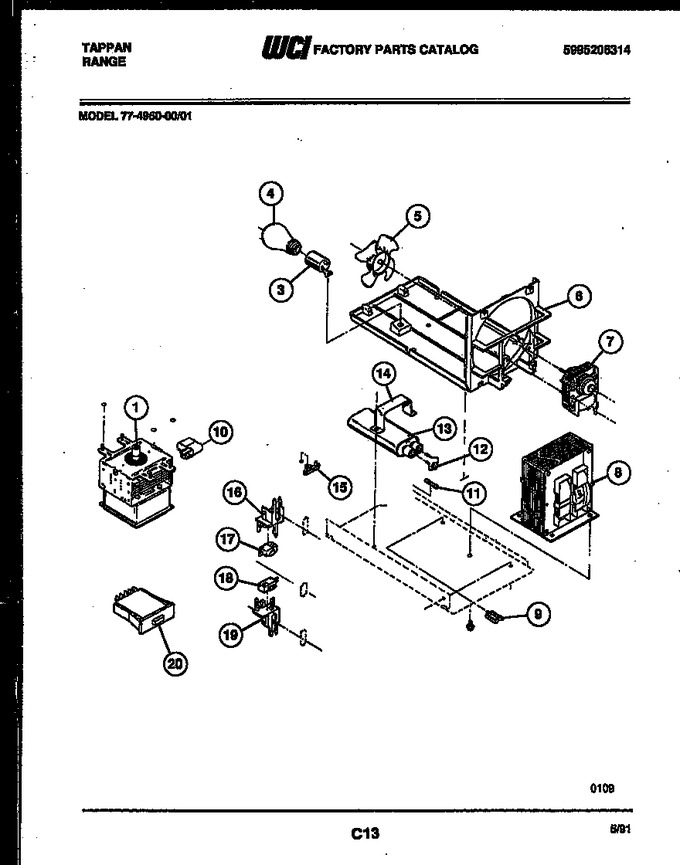

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206781 | Magnetron |
|
- | |||||
| 3 | 5303091197 | Socket - Light |
|
- | |||||
| 4 | 5308037902 | Light Bulb |
|
- | |||||
| 5 | 5303203192 | Fan-blade |
|
- | |||||
| 6 | 5303012194 | Duct-air (fan) |
|
- | |||||
| 7 | 5308037636 | Motor-fan |
|
- | |||||
| 8 | 5308037626 | Transformer |
|
- | |||||
| 9 | 5308037677 | Fstnr - Wire Clip (3) |
|
- | |||||
| 10 | 08037647 | Insulator |
|
- | |||||
| 11 | 5303200606 | Fuse 20 Amp. |
|
- | |||||
| 12 | 5303091303 | Diode High Voltage |
|
- | |||||
| 13 | 5308037624 | Capacitor |
|
- | |||||
| 14 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 15 | 5303091280 | Fuse-thermal-red |
|
- | |||||
| 16 | 5303011556 | Brkt-switch-upper |
|
- | |||||
| 17 | 5303203636 | Switch, Interlock |
|
- | |||||
| 18 | 5303203636 | Switch, Interlock |
|
- | |||||
| 19 | 5303011556 | Brkt - Switch Lwr |
|
- | |||||
| 20 | 5303201602 | Switch-monitor |
|
- | |||||
| *52323 | 5303270053 | Insulator-capacitor |
|
- | |||||
| *52323 | 3091254 | Stud-clinch Grd |
|
- | |||||
| *52323 | 5303270051 | Harness-aux Fan |
|
- | |||||
| *52323 | 5303270050 | Harness-power Supply |
|
- | |||||
| *52323 | 5303018857 | Harness-turntable |
|
- | |||||
| *52323 | 5303206757 | Harness-main |
|
- | |||||
| *52323 | 191T175F197 | Wiring Diagram-microwave (not For Purchase) |
|
- |
