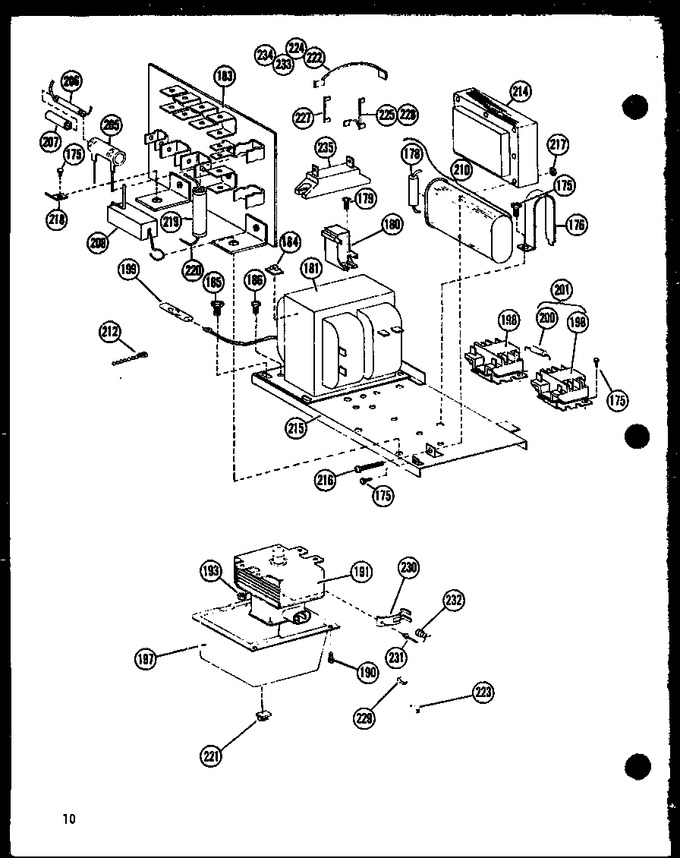

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | M0218116 | Screw |
|
- | |||||
| 176 | A3257001 | Strap-capacitor |
|
- | |||||
| 178 | M0305202 | Resistor A |
|
- | |||||
| 179 | M0216517 | Screw |
|
- | |||||
| 180 | B5767802 | Kit, Diode |
|
- | |||||
| 181 | D7329801 | Transformer-hv |
|
- | |||||
| 183 | C8791301 | Terminal Board |
|
- | |||||
| 184 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 185 | YM0258229 | Sems Fastener |
|
- | |||||
| 186 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 190 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 191 | C8761701 | Magnetron |
|
- | |||||
| 193 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 197 | C8785701 | Cover-magnetron |
|
- | |||||
| 198 | C3656303 | Relay A |
|
- | |||||
| 199 | A0304501 | Connector A-k |
|
- | |||||
| 200 | M0305007 | Resistor, Relay A |
|
- | |||||
| 201 | R0159004 | Relay Assy K |
|
- | |||||
| 205 | M0305009 | Resistor A |
|
- | |||||
| 206 | M0308102 | Fuse |
|
- | |||||
| 207 | M0321701 | Sleeve |
|
- | |||||
| 208 | M0305204 | Resistor |
|
- | |||||
| 210 | R0160002 | Capacitor Assy |
|
- | |||||
| 212 | WPW10339879 | Tie K (Replaces: M0321201) |
|
$ 7.11 | |||||
| 215 | D7330001 | Plate-trans Mtg |
|
- | |||||
| 218 | M0320901 | Terminal |
|
- | |||||
| 219 | M0305402 | Resistor Fuse Kit |
|
- | |||||
| 220 | M0308101 | Fuse |
|
$ 9.87 | |||||
| 221 | M0104701 | Clip-cord |
|
- | |||||
| 222 | C3655807 | Jumper Wire |
|
- | |||||
| 223 | M0325301 | Insulator, Term. K |
|
- | |||||
| 224 | D7292630 | Wire, Jumper H.v. Capacitor To |
|
- | |||||
| 225 | D7292621 | Jumper Wire |
|
- | |||||
| 227 | D7292624 | Jumper Wire |
|
- | |||||
| 228 | D7292627 | Jumper Wire |
|
- | |||||
| 229 | M0325501 | Insulator, Pod K |
|
- | |||||
| 230 | B5725101 | Clip |
|
- | |||||
| 231 | A4539601 | Pop Rivet |
|
- | |||||
| 232 | B5665810 | Thermal Cut Out |
|
- | |||||
| 233 | C3655868 | Jumper Wire |
|
- | |||||
| 234 | D7292623 | Jumper Wire-yellow K |
|
- |
