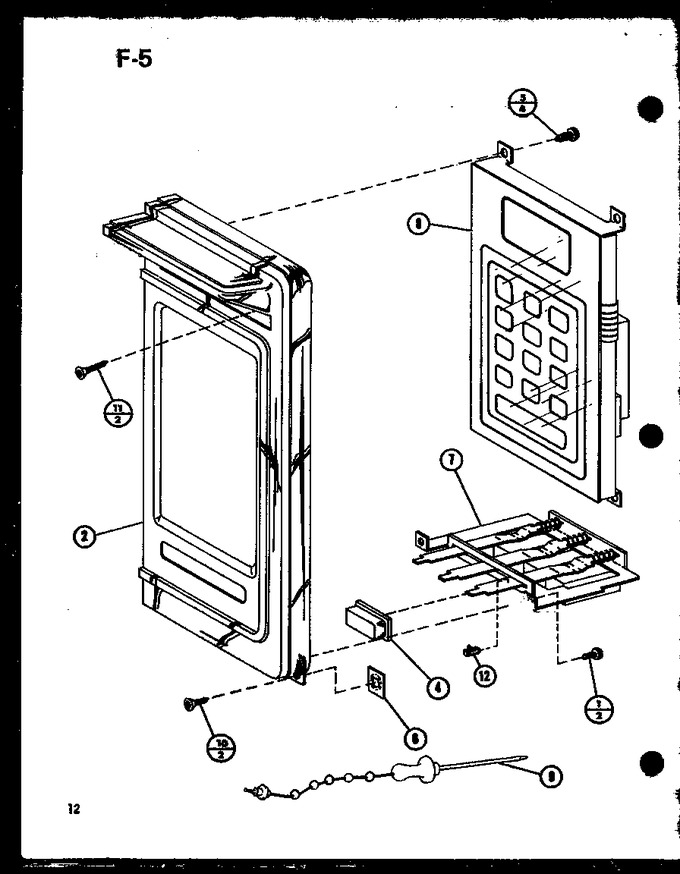

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0259203 | Screw |
|
- | |||||
| 2 | D7533801 | Escut. Control |
|
- | |||||
| 4 | C8869501 | Start Button |
|
- | |||||
| 4 | C8869401 | Stop Button |
|
- | |||||
| 4 | C8869301 | Light Button |
|
- | |||||
| 5 | M0234016 | Screw |
|
- | |||||
| 6 | M0288701 | Speed Nut ``u`` Type- Nameplate |
|
- | |||||
| 7 | D7546302 | Switch Ssl K |
|
- | |||||
| 8 | D7595501 | Module, Timer |
|
- | |||||
| 8 | D7595601 | Module, Timer |
|
- | |||||
| 9 | C8821503 | Temp Probe |
|
- | |||||
| 10 | M0243318 | Screw, Tf |
|
- | |||||
| 11 | A1039301 | Spring |
|
- | |||||
| 12 | A1039301 | Spring |
|
- | |||||
| NI | R0193046 | Torx Bit Tx 15h |
|
- |
