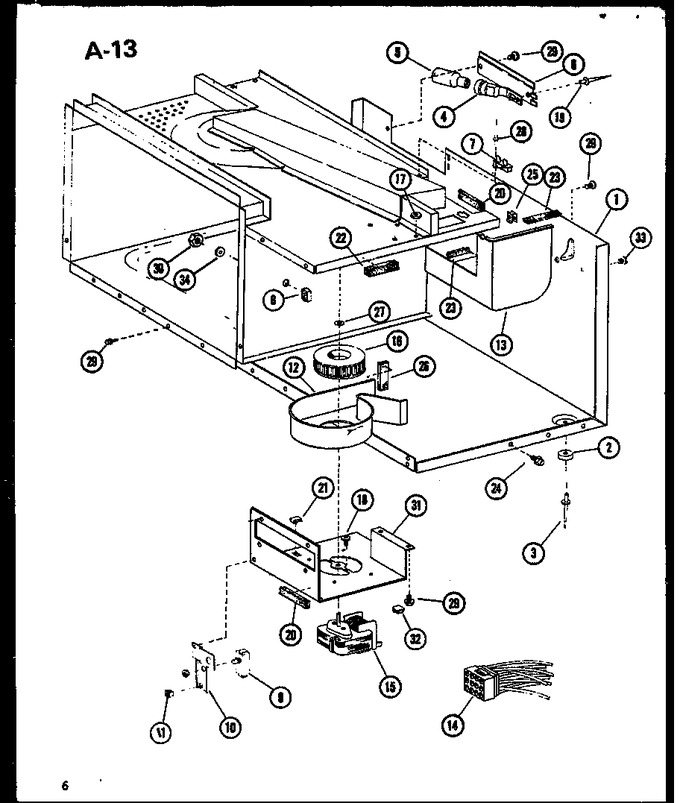

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7506205		Base Pan		Appelez-nous	-
2	B5732505		Foot		Appelez-nous	-
3	A4539619		Pop Rivet		Appelez-nous	-
4	B5784001		Socket		Appelez-nous	-
5	A3167501		Bulb Q				$ 28.47
6	B5782906		Access Panel		Appelez-nous	-
7	B5795303		Fuse, Thermal		Appelez-nous	-
8	B8355401		Temp Probe Jack K		Appelez-nous	-
9	C8715204		Switch Door Open		Appelez-nous	-
10	C8896601		Bracket		Appelez-nous	-
11	M0580204		Grommet		Appelez-nous	-
12	C8797201		Blower Scroll		Appelez-nous	-
13	D7349002		Magnetron Cover		Appelez-nous	-
14	D7613101		Wire Harness Oven		Appelez-nous	-
15	C8793201		Motor		Appelez-nous	-
16	C8793501		Blower Wheel		Appelez-nous	-
17	M0282801		Lock-nut---k		Appelez-nous	-
18	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
19	A4539601		Pop Rivet		Appelez-nous	-
20	A3030302		Gasket		Appelez-nous	-
21	M0113501		Clip		Appelez-nous	-
22	A3030303		Gasket (per Foot)		Appelez-nous	-
23	A3030309		Gasket (per Foot)		Appelez-nous	-
24	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
25	M0288213		Clip		Appelez-nous	-
26	A3030308		Gasket		Appelez-nous	-
27	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
28	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
29	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
30	M0281405		Nut K		Appelez-nous	-
31	D7533302		Mtg Plate		Appelez-nous	-
32	M0104102		Clip, Cord				$ 8.10
33	M0216519		Screw		Appelez-nous	-
34	M0270536		Washer		Appelez-nous	-
