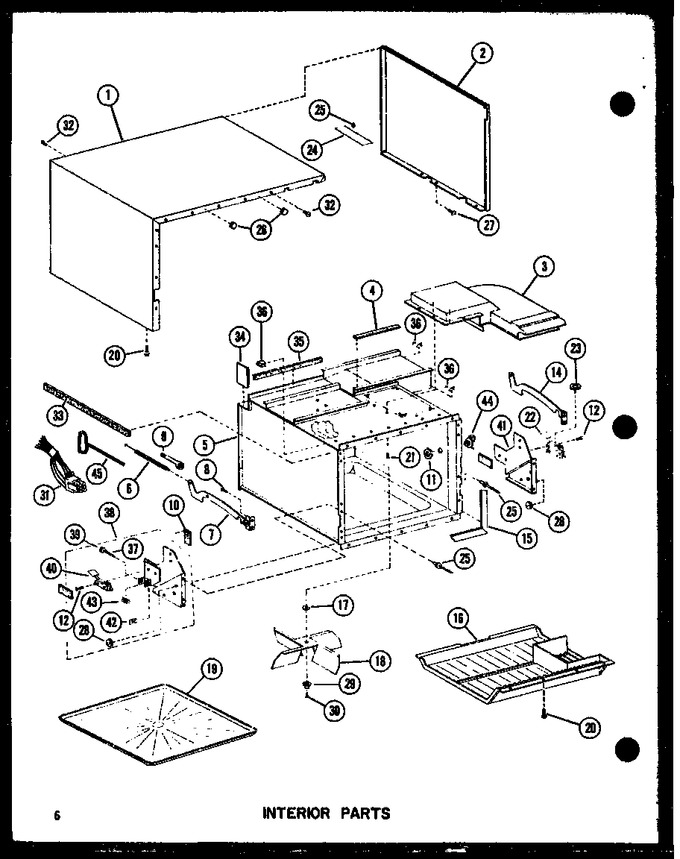

01 - Interior Parts
02 - Interior Parts
03 - Page 1
04 - Page 4
05 - Page 5
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7257502 | Wrapper-oc |
|
- | |||||
| 2 | D7335801 | Access Panel |
|
- | |||||
| 3 | D7350203 | Air Duct |
|
- | |||||
| 4 | A3030302 | Gasket |
|
- | |||||
| 5 | D7168315 | Oven Wld |
|
- | |||||
| 6 | M0775001 | Spring |
|
- | |||||
| 7 | B5693104 | Cb Arm L A |
|
- | |||||
| 8 | M0258518 | Screw |
|
- | |||||
| 9 | R0193032 | Screw Remover |
|
$ 31.92 | |||||
| 10 | M0050902 | X$x Pad |
|
- | |||||
| 11 | A3275701 | Nut-decorative |
|
- | |||||
| 12 | M0227525 | Screw A-k |
|
- | |||||
| 14 | B5693103 | Cb Arm R A |
|
- | |||||
| 15 | C3637201 | Gasket |
|
- | |||||
| 16 | D7352601 | Grease Shield |
|
- | |||||
| 17 | B5704203 | Bushing-stirrer Mt |
|
- | |||||
| 18 | C8720801 | Xfan Blade-stirrer |
|
- | |||||
| 19 | D7089602 | Oven Tray Kit |
|
- | |||||
| 20 | M0230015 | Screw |
|
- | |||||
| 21 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 22 | C8736705 | Interlock Switch |
|
- | |||||
| 23 | A3145101 | Washer K |
|
- | |||||
| 24 | B5738501 | Seal K |
|
- | |||||
| 25 | A4539601 | Pop Rivet |
|
- | |||||
| 26 | A1511502 | Bumper |
|
- | |||||
| 27 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 28 | R0157145 | Roller Assy Kit |
|
- | |||||
| 29 | A3214801 | Bearing |
|
- | |||||
| 30 | A3214903 | Shoulder Screw |
|
- | |||||
| 31 | D7348501 | Wiring Harness |
|
- | |||||
| 32 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 33 | A3263901 | Gasket |
|
- | |||||
| 34 | B5695301 | Gasket |
|
- | |||||
| 35 | B5695302 | Gasket, Air Sealing |
|
- | |||||
| 36 | M0118801 | Clip |
|
- | |||||
| 37 | A3277601 | Screw Adjusting A-k |
|
- | |||||
| 38 | C8783106 | Bracket L.h. Assembly With Rol |
|
- | |||||
| 39 | A3277801 | Guide Screw A-k |
|
- | |||||
| 40 | A3162510 | Switch-l Intl A |
|
- | |||||
| 41 | C8783102 | Bracket R.h. Assembly With Rol |
|
- | |||||
| 42 | M0286105 | Speed Nut |
|
- | |||||
| 43 | A3277701 | Spring A |
|
- | |||||
| 44 | A3275601 | Jack Assembly |
|
- | |||||
| 45 | R0193039 | Adj Tool-interlock |
|
- |
