SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

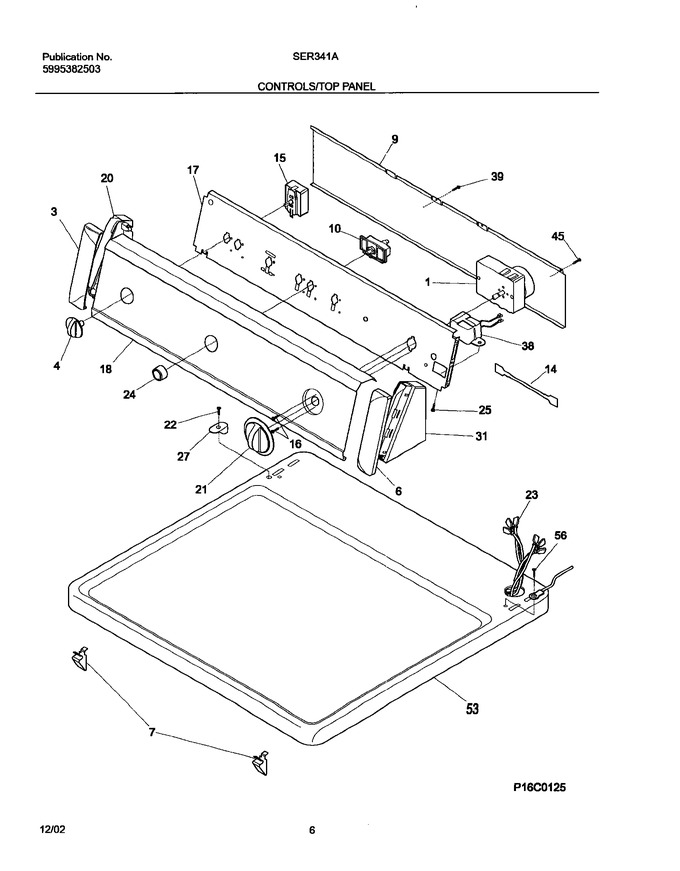

07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer			Immediately	$ 269.37
3	131122613		Cover,end Cap ,bisque ,lh		Appelez-nous	-
4	131141107		Knob,rotary ,bisque/brown		Appelez-nous	-
6	131122603		Cover,end Cap ,bisque ,rh		Appelez-nous	-
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	134088700		Panel,console Back		Appelez-nous	-
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131728900		Bracket,control Mtg.		Appelez-nous	-
18	134077100		Panel,console ,bisque		Appelez-nous	-
20	131122713		End Cap,bisque ,lh		Appelez-nous	-
21	131810502		Knob,timer ,bisque/brown		Appelez-nous	-
22	131266300		Screw,cr Oval Head ,8-18ab X 1.250 ,black		Appelez-nous	-
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	131122703		End Cap,bisque ,rh		Appelez-nous	-
39	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086804		Panel,dryer Top ,bisque ,console Mtg		Appelez-nous	-
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,brkt-to-top Pnl				$ 10.46
F10	131469000		Switch-push/start			Immediately	$ 55.81
F14	3205243		Resistor,power ,4.4 Kilohm ,with Terminal		Appelez-nous	-
F15	131048100		Switch, Temperature		Appelez-nous	-
F23	134109800		Wiring Harness		Appelez-nous	-
F24	131111506		Button,start Switch ,bisque		Appelez-nous	-
F38	5303210285		Buzzer				$ 65.78

    View Diagram in Separate Window       Print Part List
