SELECT A DIAGRAM

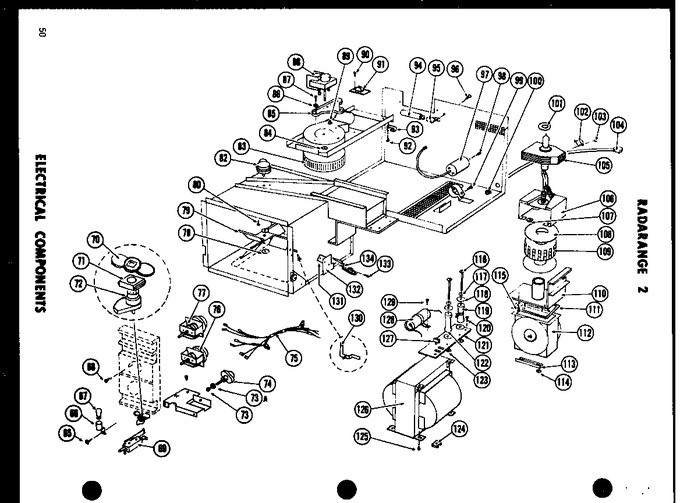

01 - Electrical Components
02 - Page 3
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 65 | M0228015 | Screw |
|
- | |||||
| 66 | B5603103 | Socket K |
|
- | |||||
| 67 | W10857122 | Light Bulb (Replaces: M0360001) |
|
$ 12.45 | |||||
| 68 | WPW10068250 | Screw (Replaces: M0202530) |
|
$ 3.66 | |||||
| 69 | A3141501 | Start Switch |
|
- | |||||
| 70 | A3127701 | Cam |
|
- | |||||
| 71 | A3134301 | Bearing Insert |
|
- | |||||
| 72 | B5631101 | Cam,switch |
|
- | |||||
| 73 | M0272511 | Washer |
|
- | |||||
| 73 | M0281401 | Nut A |
|
- | |||||
| 74 | M0340101 | Switch |
|
- | |||||
| 75 | C3627001 | Wiring Harness |
|
- | |||||
| 76 | B5630901 | Timer, 30 Minute |
|
- | |||||
| 77 | B5631601 | Timer, 5 Minute |
|
- | |||||
| 78 | A3109101 | Washer |
|
- | |||||
| 79 | C3609101 | Fan Blade, Stirrer |
|
- | |||||
| 80 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.04 | ||||
| 82 | B5602803 | Motor |
|
- | |||||
| 83 | B5602201 | Blower Wheel |
|
- | |||||
| 84 | A4568701 | Grommet |
|
- | |||||
| 85 | B0591901 | Motor Mount |
|
- | |||||
| 86 | YA0381501 | Clip, Waterline |
|
- | |||||
| 87 | M0219018 | Screw |
|
- | |||||
| 88 | M0302602 | Motor |
|
- | |||||
| 89 | M0202642 | Screw |
|
- | |||||
| 90 | M0216517 | Screw |
|
- | |||||
| 91 | B5607001 | Terminal Board |
|
- | |||||
| 92 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 93 | M0102402 | Clamp, Power Cord To Bulkhead |
|
- | |||||
| 94 | WPA3073101 | Bulb, Oven Light (Replaces: A3079002) |
|
Immediately | $ 10.90 | ||||
| 95 | A3091002 | Socket |
|
- | |||||
| 96 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 97 | M0370201 | Bridge Rectifier |
|
- | |||||
| 98 | M0202514 | Screw |
|
- | |||||
| 99 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 100 | M0370001 | Strain Relief |
|
- | |||||
| 101 | B5621901 | Washer |
|
- | |||||
| 102 | M0370401 | Thermal Protect. |
|
- | |||||
| 102 | M0370402 | Thermal Prot |
|
- | |||||
| 103 | M0115802 | Clip |
|
- | |||||
| 103 | M0227501 | Screw |
|
- | |||||
| 104 | B5602302 | Power Cord |
|
- | |||||
| 105 | M0371101 | Magnetron |
|
- | |||||
| 106 | B5607501 | Housing, Magnetron |
|
- | |||||
| 107 | M0287002 | Speed Nut, ``u`` Type Tinnerman, |
|
- | |||||
| 108 | M0274028 | Washer |
|
- | |||||
| 109 | M0370601 | Coil Magnet |
|
- | |||||
| 110 | C3596101 | Support |
|
- | |||||
| 111 | B5623301 | Gasket |
|
- | |||||
| 112 | D3999801 | Filter Box, Assembly |
|
- | |||||
| 113 | A3113901 | Clamp |
|
- | |||||
| 114 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 115 | M0211517 | Screw |
|
- | |||||
| 116 | M0201552 | Screw |
|
- | |||||
| 117 | M0270504 | Washer |
|
- | |||||
| 118 | M0274024 | Washer K |
|
- | |||||
| 119 | M0305006 | Resistor |
|
- | |||||
| 120 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 121 | A3096601 | Terminal Board |
|
- | |||||
| 122 | M0305005 | Resistor |
|
- | |||||
| 123 | M0281209 | Nut, 10-24 Hex Keps |
|
- | |||||
| 124 | M0288502 | Speed Nut |
|
- | |||||
| 125 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 126 | M0330101 | Transformer |
|
- | |||||
| 127 | M0320801 | Bushing, Terminal K |
|
- | |||||
| 128 | M0300201 | Capacitor |
|
- | |||||
| 129 | M0211517 | Screw |
|
- | |||||
| 130 | M0560002 | Support |
|
- | |||||
| 130 | A3125601 | Reset Arm |
|
- | |||||
| 131 | M0286103 | Nut |
|
- | |||||
| 132 | A3092202 | Bracket |
|
- | |||||
| 132 | A3092201 | Bracket |
|
- | |||||
| 133 | M0256821 | Sems Fastner |
|
- | |||||
| 134 | A3103201 | Switch, Interlock |
|
- | |||||
| NI | A3097501 | Seal, Access Panel |
|
- |
