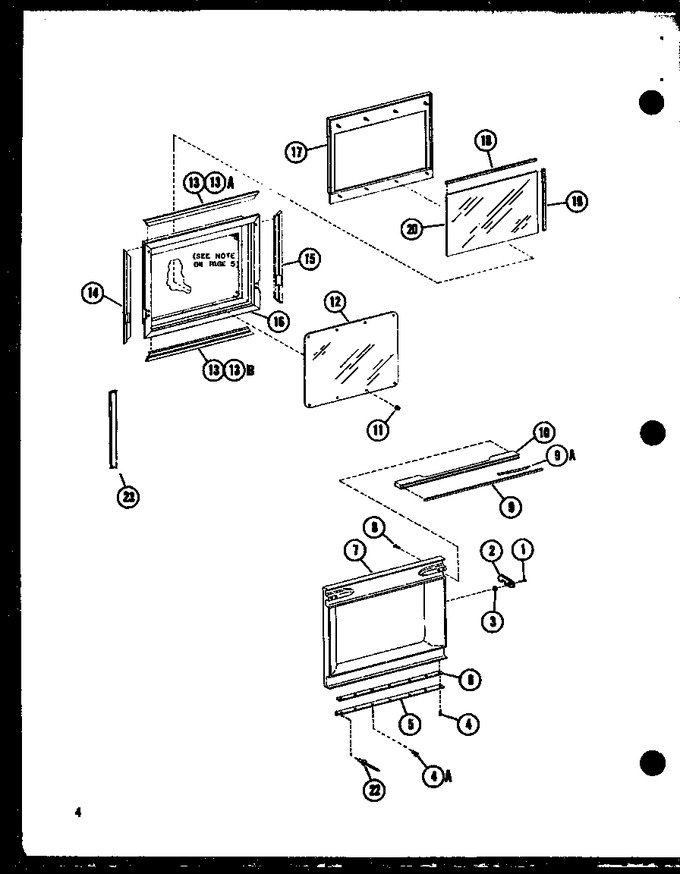

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3183901		Rivet		Appelez-nous	-
2	A3183001		Latch, Door		Appelez-nous	-
3	M0287401		Nut		Appelez-nous	-
4	M0227501		Screw		Appelez-nous	-
4	M0214503		Screw		Appelez-nous	-
5	B5603203		Hinge		Appelez-nous	-
6	A3127102		Shim		Appelez-nous	-
6	A3127101		Shim		Appelez-nous	-
7	D7238603		Door Outer		Appelez-nous	-
8	M0234117		Screw		Appelez-nous	-
9	M0910002		Adhesive		Appelez-nous	-
9	B5604802		Insert-handle		Appelez-nous	-
10	D3964801		Handle		Appelez-nous	-
11	M0288801		Nut K		Appelez-nous	-
12	A3254901		Window Outer A		Appelez-nous	-
13	D7268601		Gasket Top A		Appelez-nous	-
13	D7268602		Gasket Bottom A		Appelez-nous	-
14	D7268604		Gasket, Door, Left Side		Appelez-nous	-
15	D7268603		Gasket Right A		Appelez-nous	-
16	C8755401		Inner Door Assy A		Appelez-nous	-
17	D7240301		Inner Door Mold Assy		Appelez-nous	-
18	A3264601		Gasket Window A-k		Appelez-nous	-
19	A3264602		Gasket Window A-k		Appelez-nous	-
20	A3167901		Inner Window A-k		Appelez-nous	-
22	A4539602		Pop Rivet		Appelez-nous	-
23	M0275140		Tape Per Roll		Appelez-nous	-
