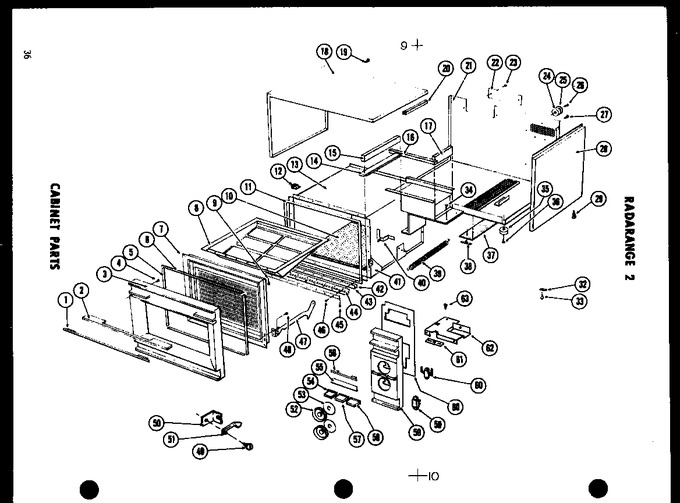

01 - Cabinet Parts


02 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5604801		Insert		Appelez-nous	-
2	D3964801		Handle		Appelez-nous	-
3	D3964602		Door Assembly		Appelez-nous	-
4	M0234117		Screw		Appelez-nous	-
5	B5629904		Gasket Right A		Appelez-nous	-
5	B5629902		Gasket, Door, Left Side		Appelez-nous	-
6	B5629903		Gasket Bottom A		Appelez-nous	-
7	C3605602		Weldment, Inner Door		Appelez-nous	-
8	D3991401		Grease Shield		Appelez-nous	-
9	M0211517		Screw		Appelez-nous	-
10	A3091101		Glass Plate		Appelez-nous	-
11	C3637201		Gasket		Appelez-nous	-
12	M0114901		Clip		Appelez-nous	-
13	D3997401		Oven, Weldment		Appelez-nous	-
14	A3030302		Gasket		Appelez-nous	-
15	A3030321		Gasket		Appelez-nous	-
16	A3030313		Gasket (per Foot)		Appelez-nous	-
17	A3030321		Gasket		Appelez-nous	-
18	C3595701		Outer Case		Appelez-nous	-
19	M0211516		Screw A K		Appelez-nous	-
20	A3030316		Gasket		Appelez-nous	-
21	C3639901		Oc Base Pan		Appelez-nous	-
22	A3092001		Panel		Appelez-nous	-
23	M0211516		Screw A K		Appelez-nous	-
24	M0011001		Foot		Appelez-nous	-
25	M0270501		Washer		Appelez-nous	-
26	M0221132		Screw		Appelez-nous	-
27	M0235603		Weld Screw		Appelez-nous	-
28	C3596301		Access Panel		Appelez-nous	-
29	M0211516		Screw A K		Appelez-nous	-
32	M0320901		Terminal		Appelez-nous	-
33	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
34	M0204642		Screw		Appelez-nous	-
35	M0011001		Foot		Appelez-nous	-
36	M0221132		Screw		Appelez-nous	-
37	A3094901		Filter		Appelez-nous	-
38	M0111203		Clip		Appelez-nous	-
39	M0775001		Spring		Appelez-nous	-
40	A3125601		Reset Arm		Appelez-nous	-
41	B5642701		Bracket, Counterbalance, R.h.		Appelez-nous	-
41	B5642702		Bracket, Counterbalance, L.h.		Appelez-nous	-
42	A3127102		Shim		Appelez-nous	-
43	A3127101		Shim		Appelez-nous	-
44	B5603201		Hinge Door		Appelez-nous	-
45	M0227501		Screw		Appelez-nous	-
46	M0214503		Screw		Appelez-nous	-
47	B5642501		Counter Balance Lh		Appelez-nous	-
47	B5642502		Counter Balance Rh		Appelez-nous	-
48	M0228016		Screw		Appelez-nous	-
49	M0219302		Screw		Appelez-nous	-
50	A3149101		Retainer		Appelez-nous	-
51	A3148901		Latch		Appelez-nous	-
52	D7028701		Knob A		Appelez-nous	-
53	B5635601		Escutcheon K		Appelez-nous	-
53	B5635602		Escutcheon K		Appelez-nous	-
54	B5631001		Start Button		Appelez-nous	-
55	C3594901		Nameplate		Appelez-nous	-
56	B5604701		Insert- K		Appelez-nous	-
57	B5631002		Stop Button		Appelez-nous	-
58	B5631003		Light Button		Appelez-nous	-
59	D7027701		Control Panel, Escutcheon		Appelez-nous	-
59	A3116201		Switch		Appelez-nous	-
60	A3152501		Buzzer		Appelez-nous	-
60	B5647701		Front-outer Case		Appelez-nous	-
61	M0282005		Nut K				$ 7.07
62	C3626901		Bracket,switch		Appelez-nous	-
63	M0256821		Sems Fastner		Appelez-nous	-
NI	B0572827		Insulation Ft. K		Appelez-nous	-
NI	M0560002		Support		Appelez-nous	-
NI	M0117001		Clip		Appelez-nous	-
NI	B0572826		Insulation		Appelez-nous	-
NI	M0270501		Washer		Appelez-nous	-
