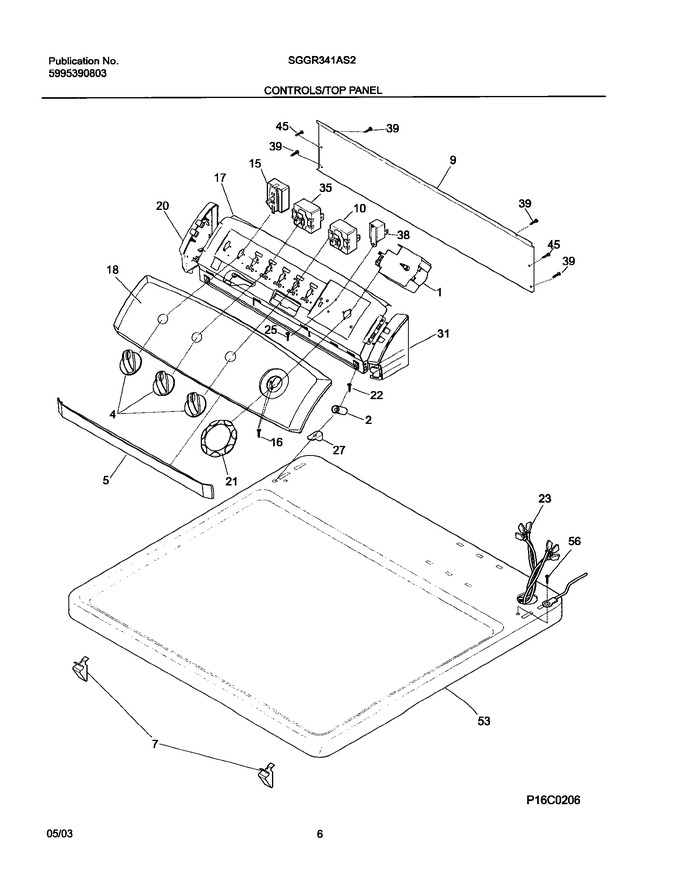

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer,dryer ,3-off				$ 336.65
2	134096100		Spacer,console Mtg				$ 13.55
4	131786603		Knob,rotary ,white/gray				$ 54.02
5	134019900		Closure,console Trim ,white ,front				$ 66.68
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	131992900		Panel,backsheet ,console				$ 72.66
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131993010		Bracket,control Mtg.		Appelez-nous	-
18	134174300		Panel,console ,white		Appelez-nous	-
20	134019610		End Cap,white ,lh				$ 46.31
21	131873203		Knob,timer ,white/gray				$ 62.23
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	134019600		End Cap,white ,rh				$ 46.10
39	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F15	131048100		Switch, Temperature		Appelez-nous	-
F23	134005300		Harn-fsd Prh Gas		Appelez-nous	-
F35	131243200		Switch,xrinse/temp/bzr ,2 Position ,(2)		Appelez-nous	-
F38	131629400		Buzzer-mini				$ 84.30
NI	131629600		Wiring Harness,mini Buzzer				$ 15.81
