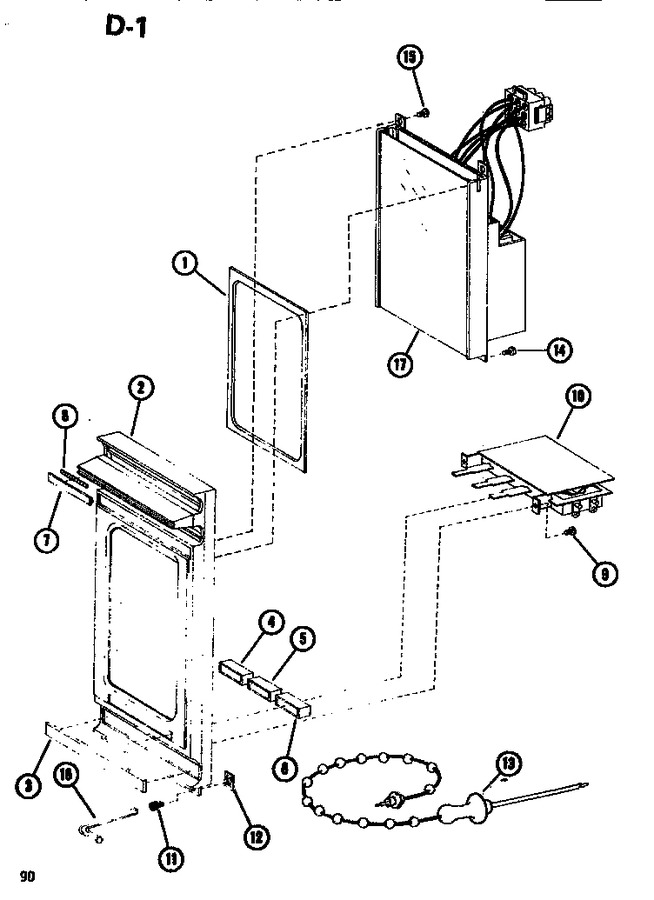

01 - Control Panel
02 - Exterior
03 - Interior
04 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8776701 | Gasket |
|
- | |||||
| 2 | D7350301 | Escutcheon K |
|
- | |||||
| 3 | B5799701 | Nameplate |
|
- | |||||
| 4 | C8743104 | Button (start) K |
|
- | |||||
| 5 | C8743105 | Button (stop) K |
|
- | |||||
| 6 | C8743106 | Button (light) |
|
- | |||||
| 7 | B5703901 | Insert- K |
|
- | |||||
| 8 | M0910002 | Adhesive |
|
- | |||||
| 9 | M0234003 | Screw |
|
- | |||||
| 10 | C8742804 | Switch Ssl K |
|
- | |||||
| 11 | M0234016 | Screw |
|
- | |||||
| 12 | M0288701 | Speed Nut ``u`` Type- Nameplate |
|
- | |||||
| 13 | C8821503 | Temp Probe |
|
- | |||||
| 14 | M0234016 | Screw |
|
- | |||||
| 15 | M0253217 | Screw |
|
- | |||||
| 16 | A4696103 | Wrench-hex |
|
- | |||||
| 17 | D7474710 | Net-module Rr5-10 |
|
- |
