SELECT A DIAGRAM

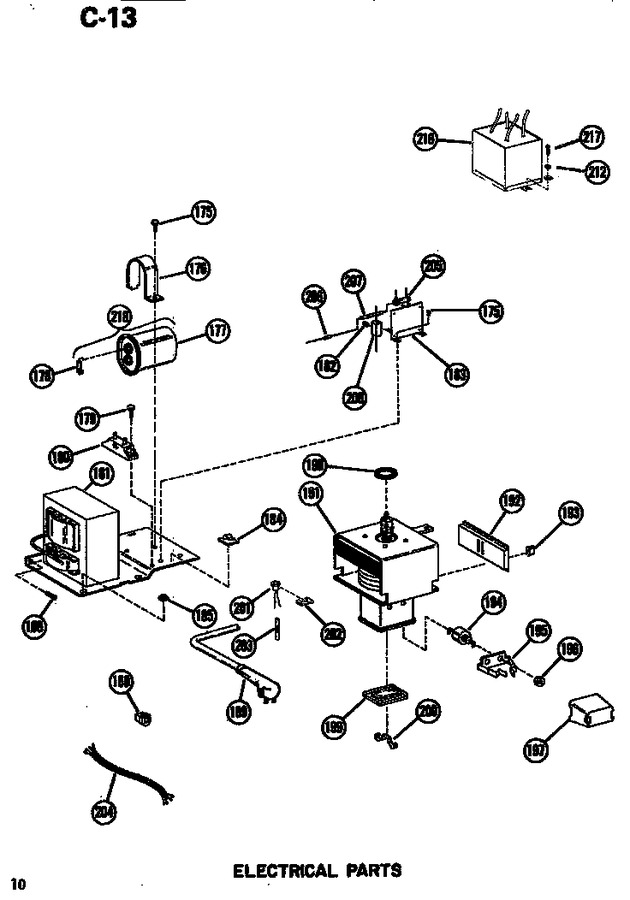

01 - Electrical


02 - Exterior


03 - Interior


04 - Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	M0218116		Screw		Appelez-nous	-
176	A3197101		Strap-capacitor A		Appelez-nous	-
177	C3679504		Capacitor Kit		Appelez-nous	-
178	M0305202		Resistor A		Appelez-nous	-
179	M0216517		Screw		Appelez-nous	-
180	D5685801		Rectifier		Appelez-nous	-
181	D7194301		Transformer		Appelez-nous	-
182	M0325501		Insulator, Pod K		Appelez-nous	-
182	M0325301		Insulator, Term. K		Appelez-nous	-
183	B5687402		Terminal Board		Appelez-nous	-
184	M0110501		Clip K		Appelez-nous	-
185	WP487939		Nut   (Replaces: M0282015)				$ 6.95
186	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
188	A3194801		Strain Relief		Appelez-nous	-
189	B5669001		Cord, Power		Appelez-nous	-
190	A3185102		Gasket, Magnetron		Appelez-nous	-
191	D7157002		Magnetron Kit,700w		Appelez-nous	-
192	B5679101		Baffle		Appelez-nous	-
193	M0113504		Clip K		Appelez-nous	-
194	A3148801		Capacitor K		Appelez-nous	-
195	B5655902		Clip K		Appelez-nous	-
196	M0281901		Hex Nut		Appelez-nous	-
197	B5656001		Shield Hv K		Appelez-nous	-
199	B5647901		Cover Cap Box K		Appelez-nous	-
200	A3145401		Bale Strap K		Appelez-nous	-
201	B5665809		Thermal Cut-out		Appelez-nous	-
202	M0115802		Clip		Appelez-nous	-
203	A0304501		Connector A-k		Appelez-nous	-
204	D7276001		Wiring Harness		Appelez-nous	-
205	M0305009		Resistor A		Appelez-nous	-
206	M0308102		Fuse		Appelez-nous	-
207	M0321701		Sleeve		Appelez-nous	-
208	M0305204		Resistor		Appelez-nous	-
216	B5707601		Line Filter		Appelez-nous	-
217	M0202516		Screw A		Appelez-nous	-
218	R0160007		Capacitor Kit		Appelez-nous	-
NI	C3655807		Jumper Wire		Appelez-nous	-
NI	C3655835		Jumper Wire K		Appelez-nous	-
NI	C3655809		Jumper Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
