SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

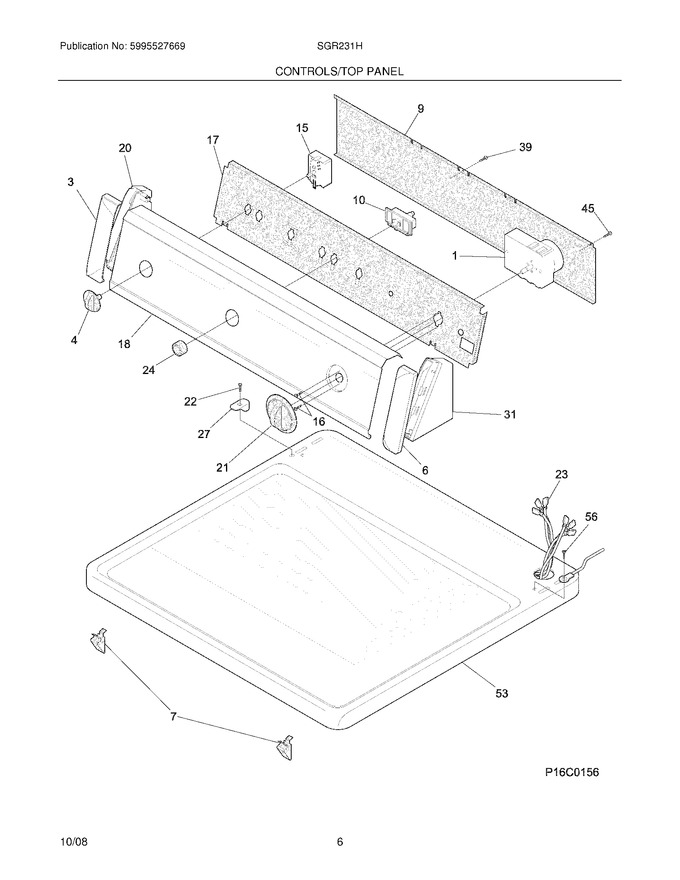

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297139		Timer-dryer				$ 387.45
3	131122613		Cover,end Cap ,bisque ,lh		Appelez-nous	-
4	131141107		Knob,rotary ,bisque/dk Brown		Appelez-nous	-
6	131122603		Cover,end Cap ,bisque ,rh		Appelez-nous	-
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	134088700		Panel,console Back		Appelez-nous	-
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	134487900		Bracket,control Mtg.		Appelez-nous	-
18	137001900		Panel,trimplate ,bisque ,console Front		Appelez-nous	-
20	131122713		End Cap,bisque ,lh		Appelez-nous	-
21	134011704		Knob,timer ,bisque/dark Brn		Appelez-nous	-
22	131266330		Screw,8-18 X 1.250				$ 7.63
24	131111506		Button,start Switch ,bisque ,push Type		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	131122703		End Cap,bisque ,rh		Appelez-nous	-
39	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086804		Panel,dryer Top ,bisque ,console Mtg		Appelez-nous	-
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F10	131469000		Switch-push/start			Immediately	$ 55.81
F15	134398400		Switch,temp Selector ,3 Position				$ 19.37
F23	134101600		Wiring Harness		Appelez-nous	-
FNI	134101400		Terminal Block,main			Immediately	$ 55.99

    View Diagram in Separate Window       Print Part List
