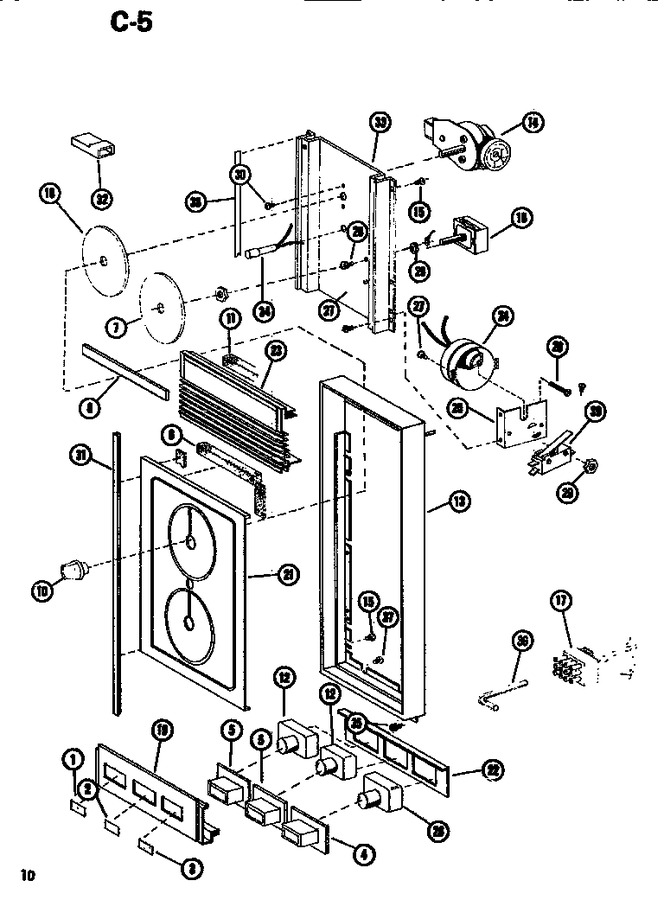

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1004801		Insert-start		Appelez-nous	-
2	A1004802		Insert-stop		Appelez-nous	-
3	A1004803		Insert-light		Appelez-nous	-
4	C8828301		Push Button		Appelez-nous	-
5	C8828201		Push Button		Appelez-nous	-
6	A3030302		Gasket		Appelez-nous	-
7	C8809702		Disc-selector		Appelez-nous	-
8	B8305301		Nameplate		Appelez-nous	-
10	C8735902		Knobs Control		Appelez-nous	-
11	A3030339		Gasket, Foam		Appelez-nous	-
12	B5762102		Switch-pb		Appelez-nous	-
13	D7277901		(+) Escutcheon Ca,fr		Appelez-nous	-
14	C8791703		Timer		Appelez-nous	-
15	M0251002		Screw		Appelez-nous	-
16	B5740103		Switch-selector		Appelez-nous	-
17	D7408101		Wiring Harness		Appelez-nous	-
18	C8809701		Disc-timer		Appelez-nous	-
19	C8794702		Escutcheon		Appelez-nous	-
20	M0202518		Screw		Appelez-nous	-
21	C8827701		Escutcheon		Appelez-nous	-
22	B5799501		Brkt-switch Mtg		Appelez-nous	-
23	C8794602		Grille		Appelez-nous	-
24	B5699802		Timer		Appelez-nous	-
25	B5699601		Bracket		Appelez-nous	-
26	B5762103		Switch-defrost		Appelez-nous	-
27	M0213815		Screw		Appelez-nous	-
28	M0202521		Screw		Appelez-nous	-
29	M0282005		Nut K				$ 7.07
30	M0234016		Screw		Appelez-nous	-
31	C8794802		Trim		Appelez-nous	-
32	M0325301		Insulator, Term. K		Appelez-nous	-
33	C8827601		Extrusion		Appelez-nous	-
34	B5785704		Light-pilot		Appelez-nous	-
35	M0229916		Screw T.c		Appelez-nous	-
36	A4696103		Wrench-hex		Appelez-nous	-
37	M0213817		Screw		Appelez-nous	-
38	M0275115		Tape Per Roll		Appelez-nous	-
39	A3220701		Switch, Cut-off		Appelez-nous	-
