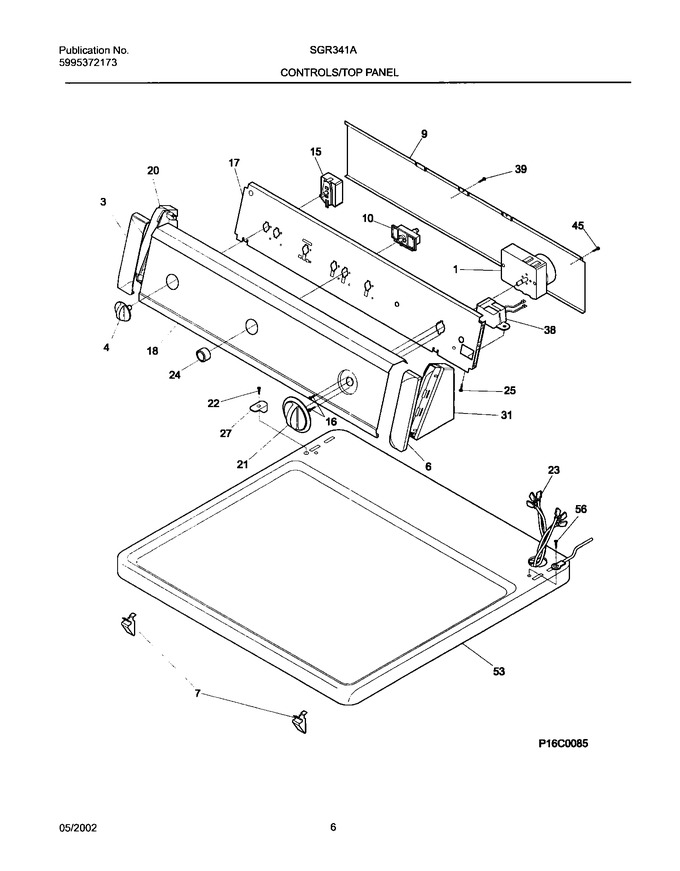

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer-dryer P Gas				$ 336.65
3	131122613		End Cap Cover-lh Bsq Ultra		Appelez-nous	-
4	131141107		Knob-rot Bsq/drk Brown		Appelez-nous	-
6	131122603		End Cap Cover-rh Bsq Ultra		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	134088700		Backsheet-f Console		Appelez-nous	-
16	134034300		Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming		Appelez-nous	-
17	131728900		Bracket-control		Appelez-nous	-
18	134077100		Trimplate Wwe/b1prjfb		Appelez-nous	-
20	131122713		End Cap Lh Bsq-ultra,20		Appelez-nous	-
21	131810502		Knob-timer Bsq/clr/drk Brown		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	134005200		Harn-fsd Prj Gas		Appelez-nous	-
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122703		End Cap Rh Bsq-ultra,31		Appelez-nous	-
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	134086804		Panel-top Fs Bsq		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,56 ,cr/sq Drive				$ 10.46
F10	131469000		Switch-push/start			Immediately	$ 55.81
F15	131048100		Switch, Temperature		Appelez-nous	-
F24	131111506		Button-start-bsq Std		Appelez-nous	-
F38	5303210285		Buzzer				$ 65.78
