SELECT A DIAGRAM

01 - Control Panel


02 - Exterior


03 - Interior


04 - Interior

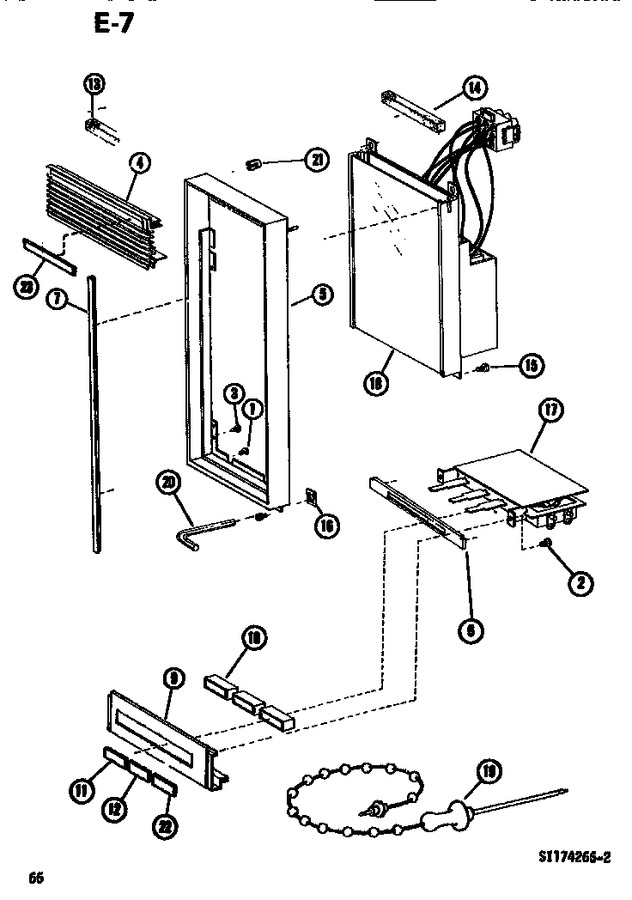

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0213817		Screw		Appelez-nous	-
2	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
3	M0213815		Screw		Appelez-nous	-
4	C8840601		Grille		Appelez-nous	-
5	D7425202		Escutcheon		Appelez-nous	-
6	B8305101		Brkt-switch		Appelez-nous	-
7	C8838003		Trim		Appelez-nous	-
7	C8838004		Trim		Appelez-nous	-
9	C8840701		Escutcheon-switch		Appelez-nous	-
10	C8840801		Button- Push		Appelez-nous	-
11	A1004801		Insert-start		Appelez-nous	-
12	A1004802		Insert-stop		Appelez-nous	-
13	A3030335		Gasket-per Ft		Appelez-nous	-
14	A3030339		Gasket, Foam		Appelez-nous	-
15	M0234016		Screw		Appelez-nous	-
16	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
17	C8787802		Switch Ssl K		Appelez-nous	-
18	D7474709		Net-module Rr5-10		Appelez-nous	-
19	C8821503		Temp Probe		Appelez-nous	-
19	D7442704		Net-module Rr5-10		Appelez-nous	-
20	A4696103		Wrench-hex		Appelez-nous	-
21	A3286501		Clip-tube		Appelez-nous	-
22	A1004803		Insert-light		Appelez-nous	-
23	B8305301		Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
