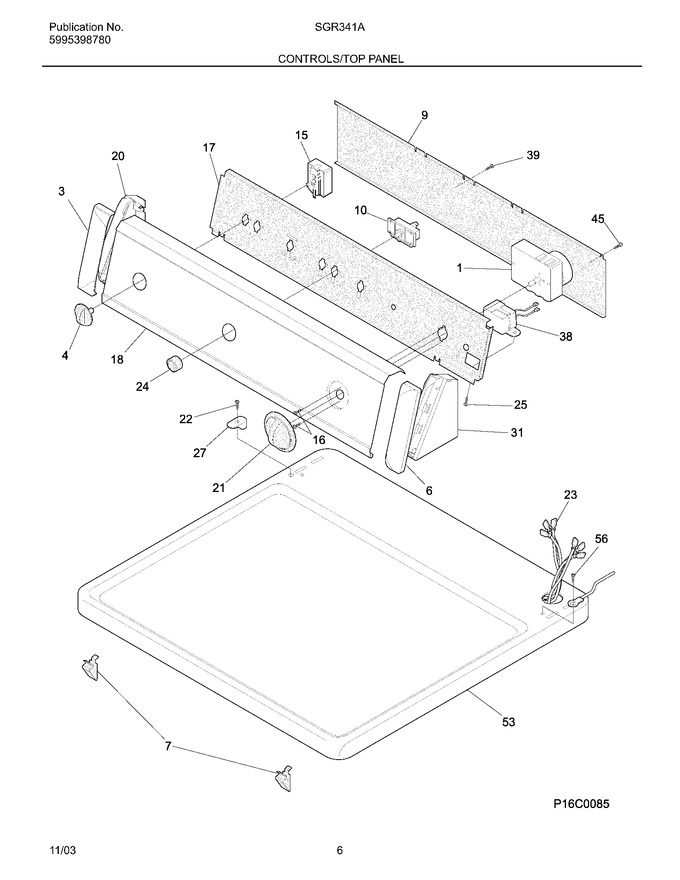

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer,dryer ,3-off				$ 336.65
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob,rotary ,white/dk Gray				$ 33.34
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	134088700		Panel,console Back		Appelez-nous	-
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131728900		Bracket,control Mtg.		Appelez-nous	-
18	134076800		Panel,console ,white		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131810500		Knob,timer ,white/gray				$ 155.35
22	131266330		Screw,8-18 X 1.250				$ 7.63
23	134005200		Wiring Harness		Appelez-nous	-
24	131111501		Button,start Switch ,white ,push Type				$ 13.79
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F10	131469000		Switch-push/start			Immediately	$ 55.81
F15	131048100		Switch, Temperature		Appelez-nous	-
F38	5303210285		Buzzer				$ 65.78
