01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner

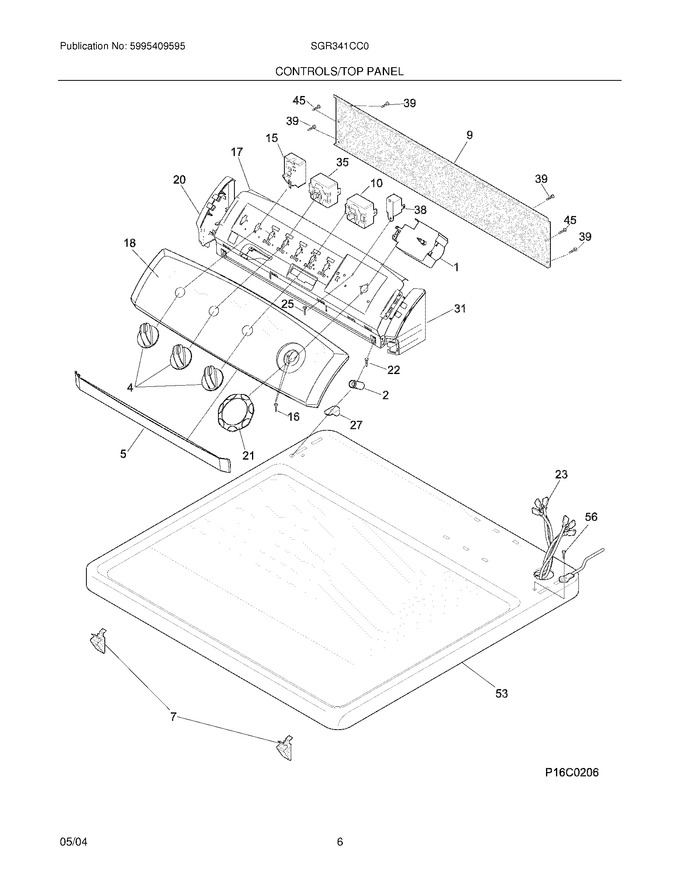

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134034902		Knob,rotary ,graphite/silver		Appelez-nous	-
5	134019920		Closure,console Trim ,silver ,front				$ 58.38
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	131992900		Panel,backsheet ,console				$ 72.66
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131993010		Bracket,control Mtg.		Appelez-nous	-
18	134327400		Panel,trimplate Assy ,white ,console Front		Appelez-nous	-
20	134019621		End Cap,silver ,lh		Appelez-nous	-
21	134886702		Knob,timer ,graphite/silver   (Replaces: 134035502)				$ 58.17
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	134019620		End Cap,silver ,rh		Appelez-nous	-
39	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F1	131583801		Timer,dryer ,3-off				$ 336.65
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F15	131048100		Switch, Temperature		Appelez-nous	-
F23	134005300		Wiring Harness,main		Appelez-nous	-
F35	131243200		Switch,2 Position		Appelez-nous	-
F38	131629400		Buzzer-mini				$ 84.30
NI	131629600		Wiring Harness,mini Buzzer				$ 15.81
NI	134101400		Terminal Block,main			Immediately	$ 55.99
