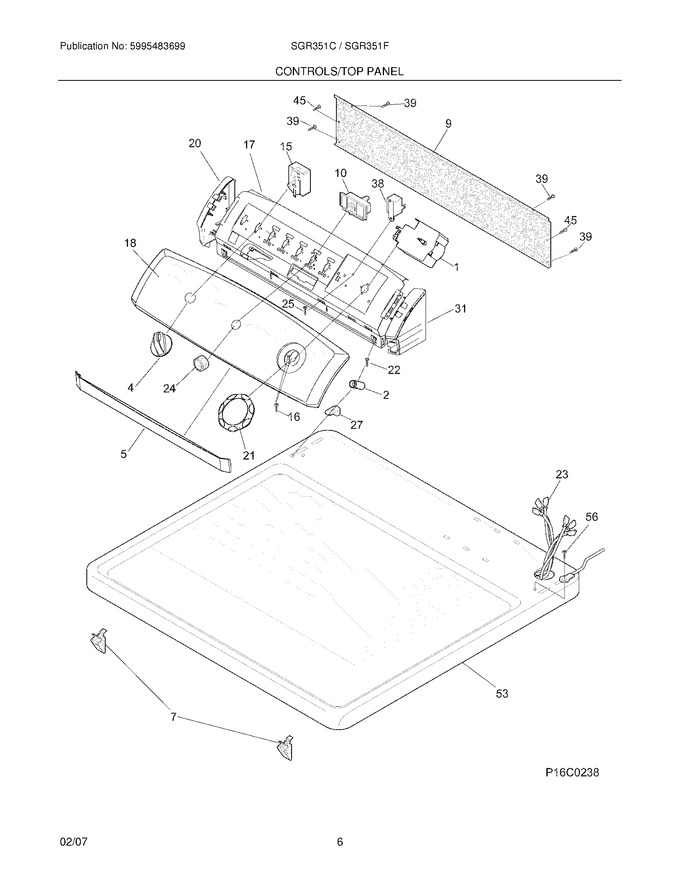

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134034911		Knob,rotary ,bisque		Appelez-nous	-
5	134019910		Closure,console Trim ,bisque ,front		Appelez-nous	-
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	131992900		Panel,backsheet ,console				$ 72.66
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131993040		Bracket,control Mtg.				$ 46.83
18	134843800		Panel,trimplate ,white ,console Front		Appelez-nous	-
20	134019611		End Cap,bisque ,lh		Appelez-nous	-
21	134035501		Knob,timer ,bisque/brown				$ 45.83
22	131266330		Screw,8-18 X 1.250				$ 7.63
24	131111506		Button,start Switch ,bisque ,push Type		Appelez-nous	-
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	134019601		End Cap,bisque ,rh		Appelez-nous	-
39	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086804		Panel,dryer Top ,bisque ,console Mtg		Appelez-nous	-
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F1	131583801		Timer,dryer ,3-off				$ 336.65
F10	131469000		Switch-push/start			Immediately	$ 55.81
F15	134398500		Switch,temp Selector ,4 Posn Rotary				$ 40.06
F23	134005300		Wiring Harness,main		Appelez-nous	-
F38	5303210285		Buzzer				$ 65.78
