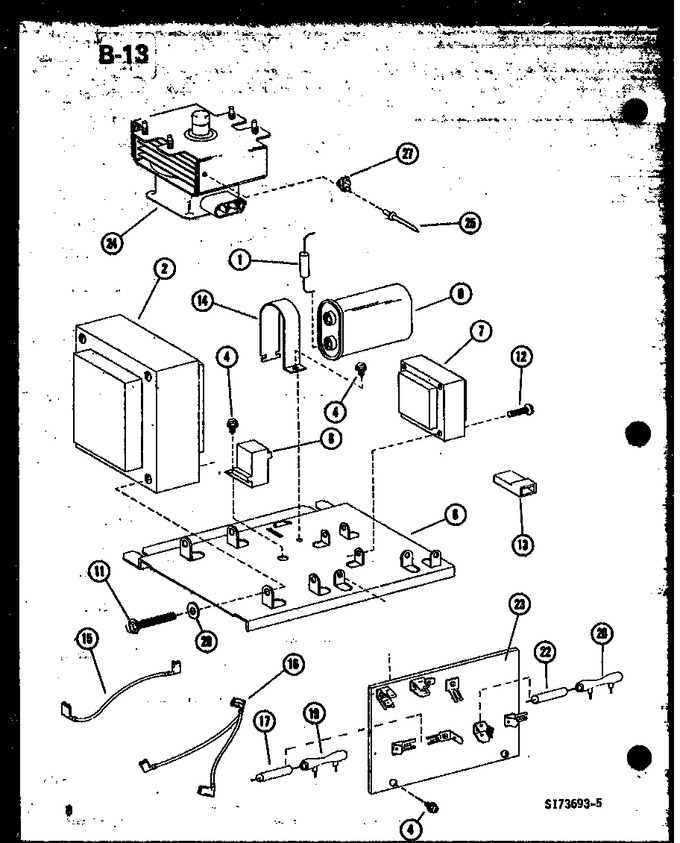

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0305202		Resistor A		Appelez-nous	-
2	D7369203		Transformer		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
6	D7351802		Transformer Mounting Plate		Appelez-nous	-
7	C8807801		Transformer-filament		Appelez-nous	-
8	B5767803		Kit, Diode		Appelez-nous	-
9	59001651		Capacitor   (Replaces: D8547901)				$ 43.15
11	M0254452		Screw		Appelez-nous	-
12	M0253509		Screw		Appelez-nous	-
13	M0325301		Insulator, Term. K		Appelez-nous	-
14	A3257003		Strap-capacitor		Appelez-nous	-
15	D7365101		Jumper Wire		Appelez-nous	-
15	D7292618		Jumper Wire		Appelez-nous	-
15	D7292619		Jumper Wire		Appelez-nous	-
16	D7292675		Jumper Wire		Appelez-nous	-
16	D7292673		Jumper Wire		Appelez-nous	-
17	M0308102		Fuse		Appelez-nous	-
19	M0308601		Resistor A		Appelez-nous	-
20	M0308607		Resistor K		Appelez-nous	-
22	M0308109		Fuse Resistor K   (Replaces: M0308107)		Appelez-nous	-
23	C8861001		Terminal Board		Appelez-nous	-
24	C8761708		Magnetron		Appelez-nous	-
25	A4539601		Pop Rivet		Appelez-nous	-
27	B5795302		Thermal Cut Out		Appelez-nous	-
28	M0272805		Lock Washer		Appelez-nous	-
