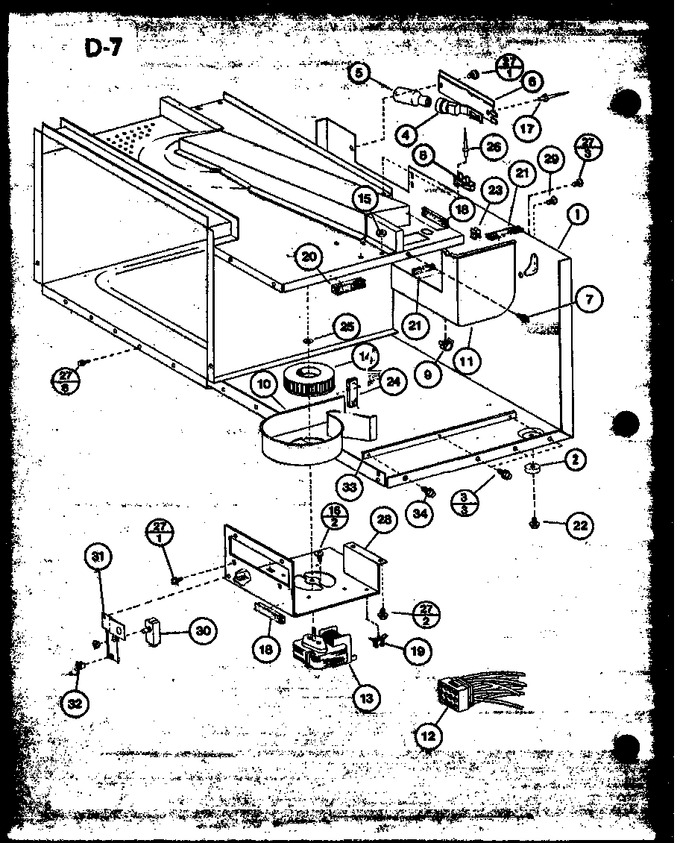

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7506205		Base Pan		Appelez-nous	-
2	B5732506		Foot O.c. Wrapper		Appelez-nous	-
3	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
4	B5784001		Socket		Appelez-nous	-
5	A3167501		Bulb Q				$ 28.47
6	B5782906		Access Panel		Appelez-nous	-
7	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
8	B5795303		Fuse, Thermal		Appelez-nous	-
9	M0106801		Clip		Appelez-nous	-
10	D7609401		Scroll		Appelez-nous	-
11	D7349003		Magnetron Cover		Appelez-nous	-
12	D7672201		Wiring Harness, Oven		Appelez-nous	-
13	C8793201		Motor		Appelez-nous	-
14	C8793501		Blower Wheel		Appelez-nous	-
15	M0282801		Lock-nut---k		Appelez-nous	-
16	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
17	A4539601		Pop Rivet		Appelez-nous	-
18	A3030302		Gasket		Appelez-nous	-
19	B5667303		Clip		Appelez-nous	-
20	A3030303		Gasket (per Foot)		Appelez-nous	-
21	A3030309		Gasket (per Foot)		Appelez-nous	-
22	M0220219		Screw-shoulder		Appelez-nous	-
23	M0288213		Clip		Appelez-nous	-
24	A3030308		Gasket		Appelez-nous	-
25	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
26	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
27	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
28	D7533302		Mtg Plate		Appelez-nous	-
29	M0216519		Screw		Appelez-nous	-
30	C8715205		Switch Door Open		Appelez-nous	-
31	C8896601		Bracket		Appelez-nous	-
32	M0580204		Grommet		Appelez-nous	-
33	B8356701		Brace, Base Pan		Appelez-nous	-
34	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
