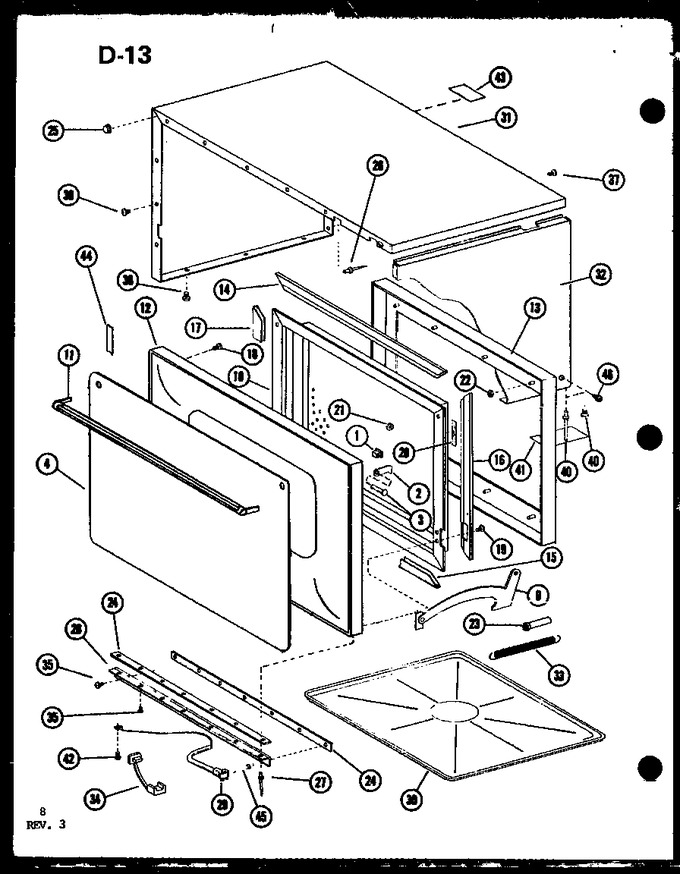

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | A3183001 | Latch, Door |
|
- | |||||
| 3 | A3183901 | Rivet |
|
- | |||||
| 4 | D7425802 | Window |
|
- | |||||
| 9 | B5693104 | Cb Arm L A |
|
- | |||||
| 9 | B5693103 | Cb Arm R A |
|
- | |||||
| 10 | C8755401 | Inner Door Assy A |
|
- | |||||
| 11 | C3671301 | Handle-door |
|
- | |||||
| 12 | D7514901 | Door Outer |
|
- | |||||
| 13 | D7564601 | Inner Door Mold Assy |
|
- | |||||
| 14 | D7320001 | Gasket Top A |
|
- | |||||
| 15 | D7320002 | Gasket Bottom A |
|
- | |||||
| 16 | D7320003 | Gasket Right A |
|
- | |||||
| 17 | D7320004 | Gasket Left A |
|
- | |||||
| 18 | M0234031 | Screw |
|
- | |||||
| 19 | M0258518 | Screw |
|
- | |||||
| 20 | M0275115 | Tape Per Roll |
|
- | |||||
| 21 | M0287401 | Nut |
|
- | |||||
| 22 | M0288801 | Nut K |
|
- | |||||
| 24 | A3127102 | Shim |
|
- | |||||
| 24 | A3127101 | Shim |
|
- | |||||
| 25 | A1511502 | Bumper |
|
- | |||||
| 26 | A4539615 | Rivet-pop |
|
- | |||||
| 27 | A4539621 | Pop Rivet |
|
- | |||||
| 28 | B5603204 | Hinge |
|
- | |||||
| 29 | B8310501 | Cord, Power |
|
- | |||||
| 30 | D7089603 | Oven Tray Kit |
|
- | |||||
| 31 | D7378106 | Outer Cabinet |
|
- | |||||
| 32 | D7378004 | Access Panel Pntd |
|
- | |||||
| 33 | M0775001 | Spring |
|
- | |||||
| 34 | A0319703 | Strain Relief K |
|
- | |||||
| 35 | M0259203 | Screw |
|
- | |||||
| 37 | M0213815 | Screw |
|
- | |||||
| 38 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 39 | M0216517 | Screw |
|
- | |||||
| 40 | A4539601 | Pop Rivet |
|
- | |||||
| 41 | B5738502 | Warranty Seal |
|
- | |||||
| 42 | M0218116 | Screw |
|
- | |||||
| 43 | M0275165 | Tape Alum |
|
- | |||||
| 44 | M0275155 | Tape Roll |
|
- | |||||
| 45 | B5642911 | Pop Rivet-c |
|
- |
