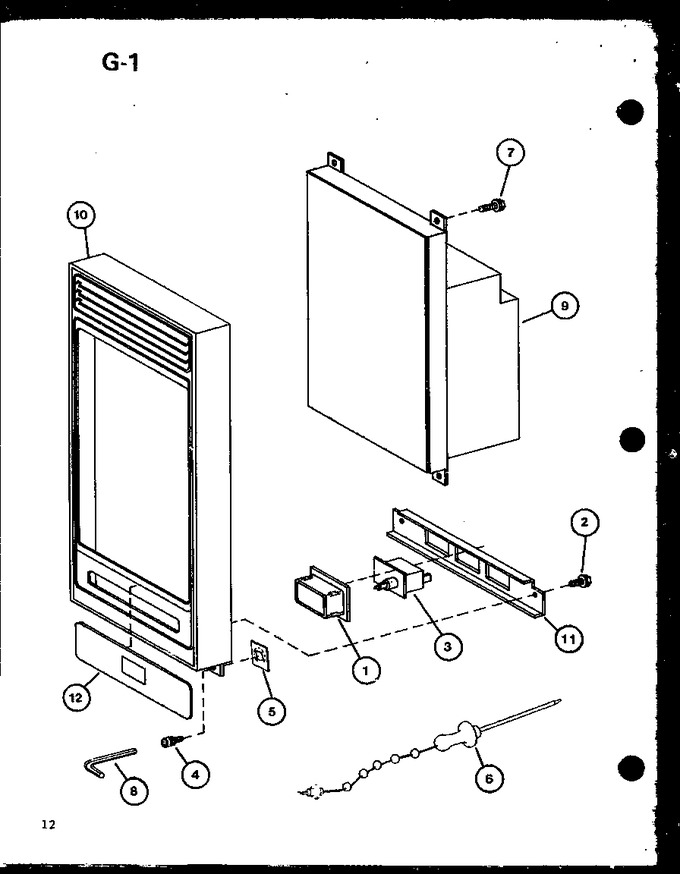

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8846501 | Button |
|
- | |||||
| 2 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 3 | B5674704 | Switch |
|
- | |||||
| 4 | M0229916 | Screw T.c |
|
- | |||||
| 5 | M0288701 | Speed Nut ``u`` Type- Nameplate |
|
- | |||||
| 6 | C8821503 | Temp Probe |
|
- | |||||
| 7 | M0234016 | Screw |
|
- | |||||
| 8 | A4696103 | Wrench-hex |
|
- | |||||
| 9 | R0163076 | Module, Timer |
|
- | |||||
| 10 | D7548904 | Escut. Control |
|
- | |||||
| 11 | B5782803 | Brkt. Switch Mtg |
|
- | |||||
| 12 | B8348104 | Thinplate |
|
- |
