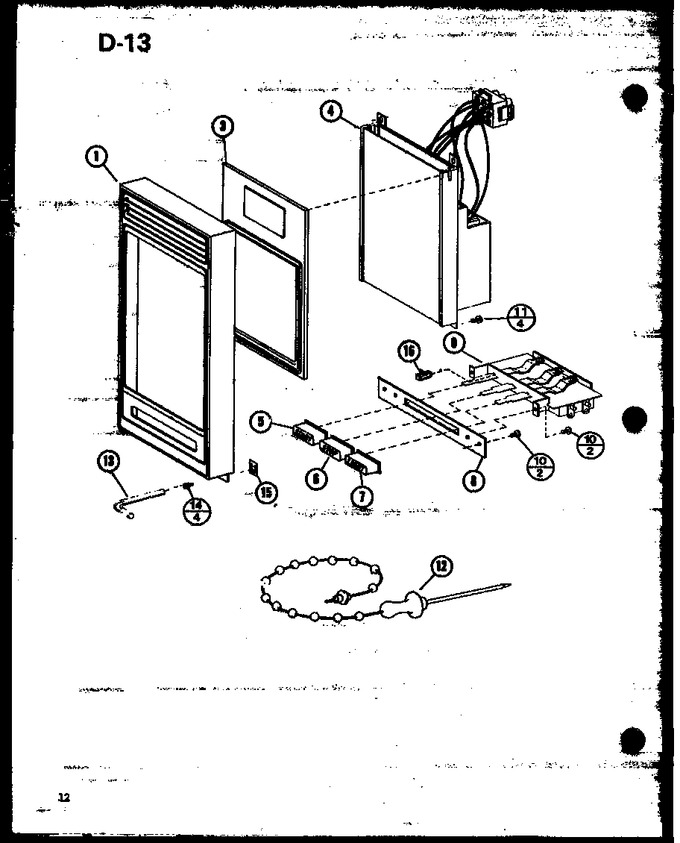

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7548904 | Escut. Control |
|
- | |||||
| 3 | C8872701 | Escutcheon Lens-k |
|
- | |||||
| 4 | R0163056 | Net-assy,module |
|
- | |||||
| 5 | C8869501 | Start Button |
|
- | |||||
| 6 | C8869401 | Stop Button |
|
- | |||||
| 7 | C8869301 | Light Button |
|
- | |||||
| 9 | D7546302 | Switch Ssl K |
|
- | |||||
| 10 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 11 | M0234016 | Screw |
|
- | |||||
| 12 | C8821503 | Temp Probe |
|
- | |||||
| 13 | A4696103 | Wrench-hex |
|
- | |||||
| 14 | M0229916 | Screw T.c |
|
- | |||||
| 15 | M0288701 | Speed Nut ``u`` Type- Nameplate |
|
- | |||||
| 16 | A1039301 | Spring |
|
- |
