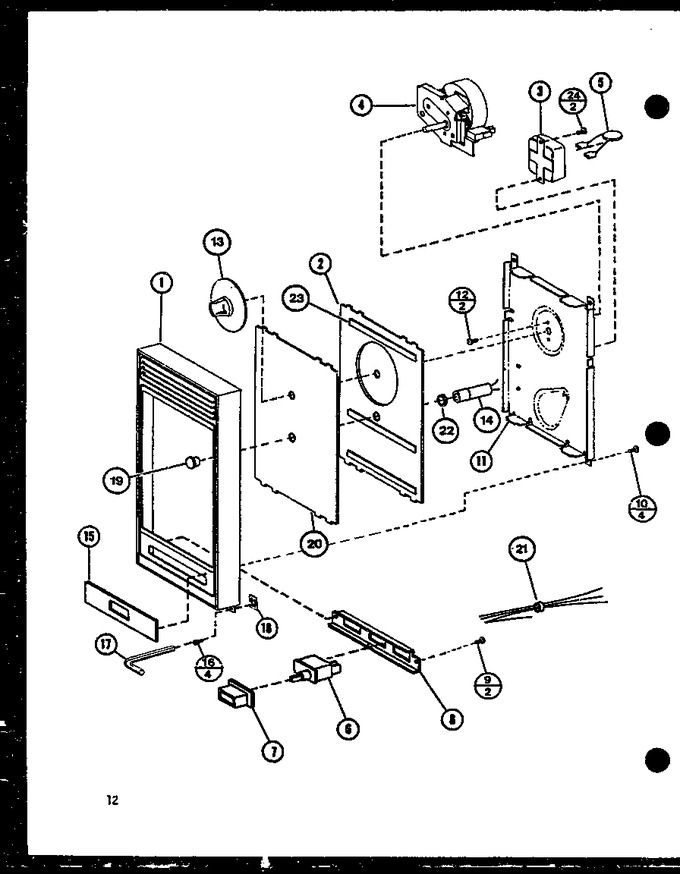

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7548906		Escutcheon Pntd		Appelez-nous	-
2	D7541207		Lens Escutcheon		Appelez-nous	-
3	B5773502		Relay K		Appelez-nous	-
4	C8834201		Timer-5 Min		Appelez-nous	-
5	A1027302		P.t.c. Resistor Assy		Appelez-nous	-
6	B5674704		Switch		Appelez-nous	-
7	C8846501		Button		Appelez-nous	-
8	B5782803		Brkt. Switch Mtg		Appelez-nous	-
9	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
10	M0234016		Screw		Appelez-nous	-
11	D7558404		Chassis Plate		Appelez-nous	-
12	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
13	B5798004		Knob Assy		Appelez-nous	-
14	B5786601		Light Pilot A		Appelez-nous	-
15	B8348102		Thinplate		Appelez-nous	-
16	M0229916		Screw T.c		Appelez-nous	-
17	A4696103		Wrench-hex		Appelez-nous	-
18	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
19	B5796701		Lens		Appelez-nous	-
20	D7618501		Thinplate Cont.		Appelez-nous	-
21	C8938701		Wiring Harness Timer		Appelez-nous	-
22	M0500701		O Ring		Appelez-nous	-
23	M0275115		Tape Per Roll		Appelez-nous	-
24	M0234114		Screw		Appelez-nous	-
