SELECT A DIAGRAM
New Model Search:

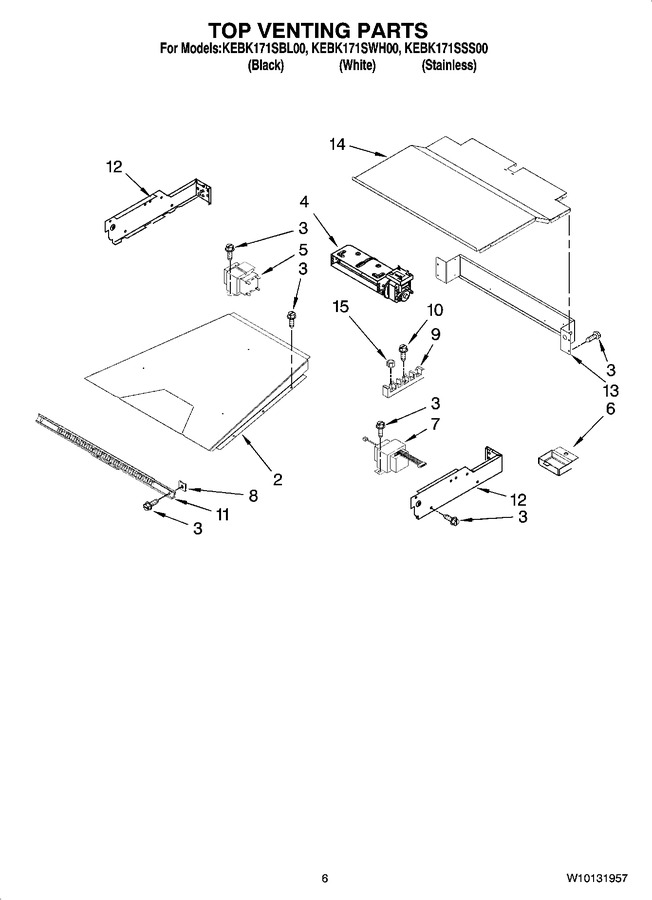

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8303514 | Duct, Air Outlet |
|
- | |||||
| 3 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 4 | WP8303972 | Blower, 60mm (Replaces: 8303972) |
|
Immediately | $ 276.88 | ||||
| 5 | WP9760588 | Transformer, Lights (Replaces: 9760588) |
|
$ 237.07 | |||||
| 6 | W11819303 | Connector, Cover (Replaces: 8285593) |
|
- | |||||
| 7 | WPW10111628 | Transformr,control (Replaces: 9760212) |
|
$ 254.91 | |||||
| 8 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.16 | |||||
| 9 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 10 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 11 | 8303722 | Vent, Control Panel |
|
$ 34.16 | |||||
| 12 | 8304255 | Side, Control Top (left) |
|
$ 36.20 | |||||
| 12 | 8303518 | Side, Control Top (right) |
|
- | |||||
| 13 | 8303520 | Back, Control |
|
$ 33.48 | |||||
| 14 | 8304220 | Cover, Top |
|
- | |||||
| 15 | WP112432 | Nut (3) (Replaces: 112432) |
|
$ 7.16 | |||||
| NI | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| NI | 242829 | Wire (12 Ga. 150 C Red) |
|
- | |||||
| NI | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| NI | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| NI | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| NI | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| NI | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| NI | W10231531 | Harness, Wire (latch) (Replaces: 8304102) |
|
$ 128.67 | |||||
| NI | W11209404 | Harness,(keyboard) (Replaces: 9762781) |
|
$ 102.00 | |||||
| NI | 8304404 | Harness, Main |
|
- | |||||
| NI | 8304051 | Harness, Wire (main) |
|
$ 56.20 | |||||
| NI | 8304438 | Conduit, Single |
|
- | |||||
| NI | 4450800 | Screw, Ground |
|
$ 11.55 | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 7.11 | |||||
| NI | WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | |||||
| NI | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| NI | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| NI | 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 11.07 | ||||
| NI | 72032 | Paint, Touch-up (1/2oz.) (black) |
|
Immediately | $ 18.69 | ||||
| NI | WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | |||||
| NI | 350930 | Paint Spray (white) |
|
Immediately | $ 34.39 | ||||
| NI | 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | |||||
| NI | 285006 | Paint Spray (black) (Replaces: 830864) |
|
Immediately | $ 51.34 | ||||
| NI | W10887190 | Bulb- Ligh (Replaces: 14201152) |
|
Immediately | $ 16.48 | ||||
| NI | 591014 | Adhesive Loctite (1/3 Oz.)) |
|
- | |||||
| NI | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| NI | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| NI | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| NI | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| NI | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| NI | 242823 | Wire (14 Ga. 150 C Green) |
|
- |
