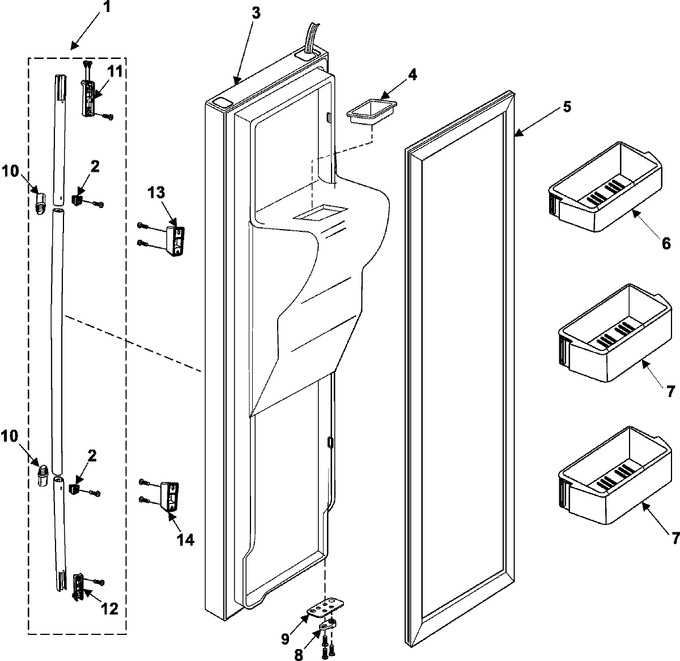

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02829B		Assy Handle-ft;best Buy		Appelez-nous	-
2	DA63-02552A		Grommet-fixer Handle				$ 0.85
3	DA91-02059E		Assy Door Foam Fre;rs25,black		Appelez-nous	-
4	DA67-00513B		Cap-chute Ice(85);a-top,cool-w		Appelez-nous	-
5	DA97-01800J		Assy-gasket Door,fre;2004 Bby,		Appelez-nous	-
6	DA63-00895E		Guard-fre Up(85);a-top,hips,co		Appelez-nous	-
7	DA63-00827E		Guard-fre Low(85);a-top,hipp,c		Appelez-nous	-
8	DA66-00344A		Cam-hinge Riser Low				$ 1.66
9	DA61-00430A		Stopper Door				$ 14.72
10	DA64-01533A		Trim-handle Mid				$ 17.27
11	DA67-01238A		Cap-handle Up		Appelez-nous	-
12	DA67-01239A		Cap-handle Low		Appelez-nous	-
13	DA61-02176E		Support-handle Up		Appelez-nous	-
14	DA61-02177E		Support-handle Low		Appelez-nous	-
