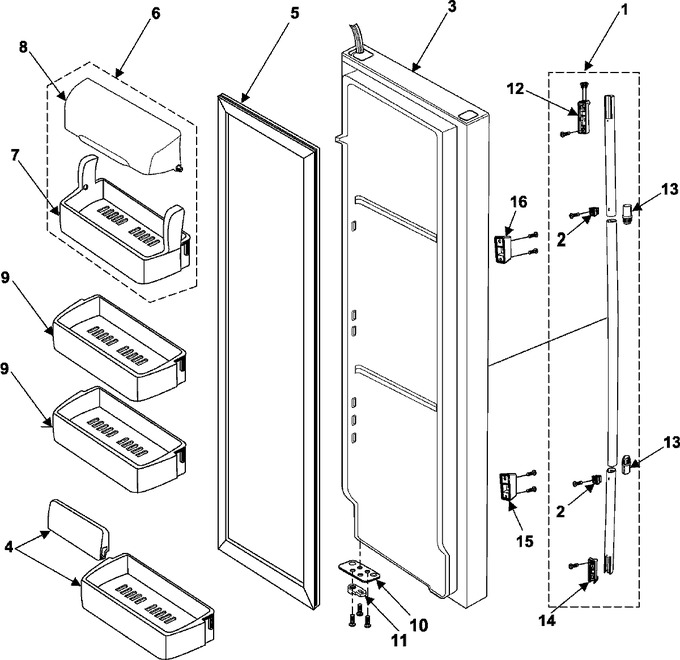

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02829B		Assy Handle-ft;best Buy		Appelez-nous	-
2	DA63-02552A		Grommet-fixer Handle				$ 0.85
3	DA91-02060C		Assy Door Foam Ref;rs25,stainl		Appelez-nous	-
4	DA71-00090A		Guide-bottle Ref				$ 10.60
5	DA97-01800D		Assy-gasket Door,ref;a-top,w46				$ 123.98
6	DA97-00697E		Assy Guard-dairy(85);best-buy,		Appelez-nous	-
7	DA63-00836D		Guard-dairy(85);a-top,hips,coo				$ 74.73
8	DA63-00825B		Cover-guard Dairy		Appelez-nous	-
9	DA63-00828D		Guard-ref Low(85);a-top,hipp,c		Appelez-nous	-
10	DA61-00430A		Stopper Door				$ 14.72
11	DA66-00344A		Cam-hinge Riser Low				$ 1.66
12	DA67-01238A		Cap-handle Up		Appelez-nous	-
13	DA64-01533A		Trim-handle Mid				$ 17.27
14	DA67-01239A		Cap-handle Low		Appelez-nous	-
15	DA61-02177E		Support-handle Low		Appelez-nous	-
16	DA61-02176E		Support-handle Up		Appelez-nous	-
