SELECT A DIAGRAM

01 - Enclosure


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Ice Maker


09 - Machine Compartment-compressor


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

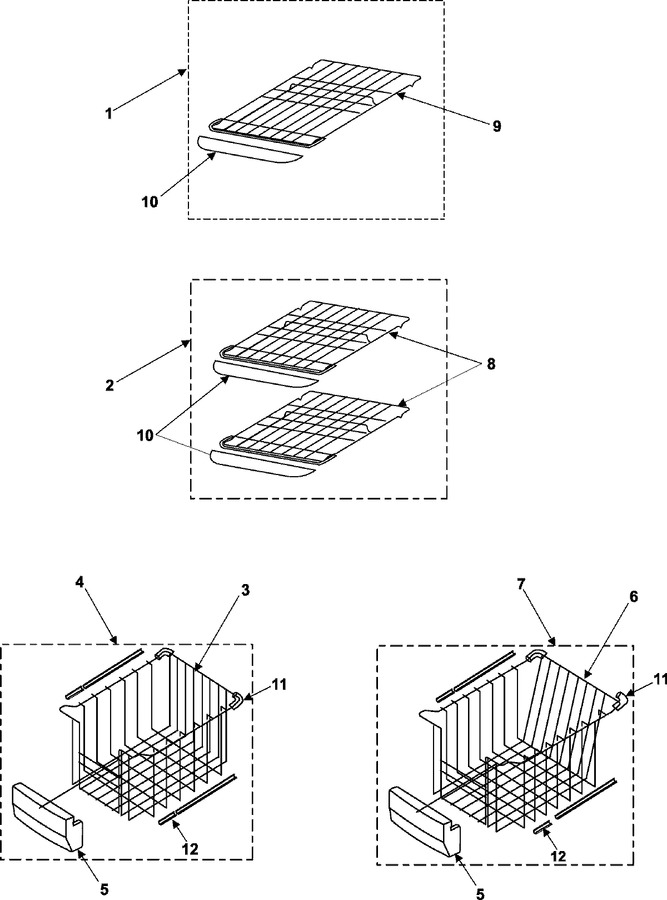

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Assy Shelf Wire-fre Mid Currently Unavailable		Appelez-nous	-
2	Y00000000		See Note Assy Shelf Wire-fre Low Currently Unavailable		Appelez-nous	-
3	DA61-00777D		Case-wire Basket,up		Appelez-nous	-
4	DA97-00701F		Assy Case-wire Basket,up		Appelez-nous	-
5	DA63-01290B		Cover-wire Basket;a-top,hips,c		Appelez-nous	-
6	DA61-02178A		Case-basket Wire,big,a-top M/c		Appelez-nous	-
7	DA97-02817A		Assy Case-wire Basket,low;bby		Appelez-nous	-
8	DA67-00765D		Shelf Wire-fre Low		Appelez-nous	-
9	DA67-00766D		Shelf Wire-fre Mid		Appelez-nous	-
10	DA64-00670B		Trim-shelf Wire;a-top,hips,coo		Appelez-nous	-
11	DA64-00675A		Trim-wire Basket,a		Appelez-nous	-
12	DA64-00676E		Trim-wire Basket,b;ad,pvc,-,-,		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
