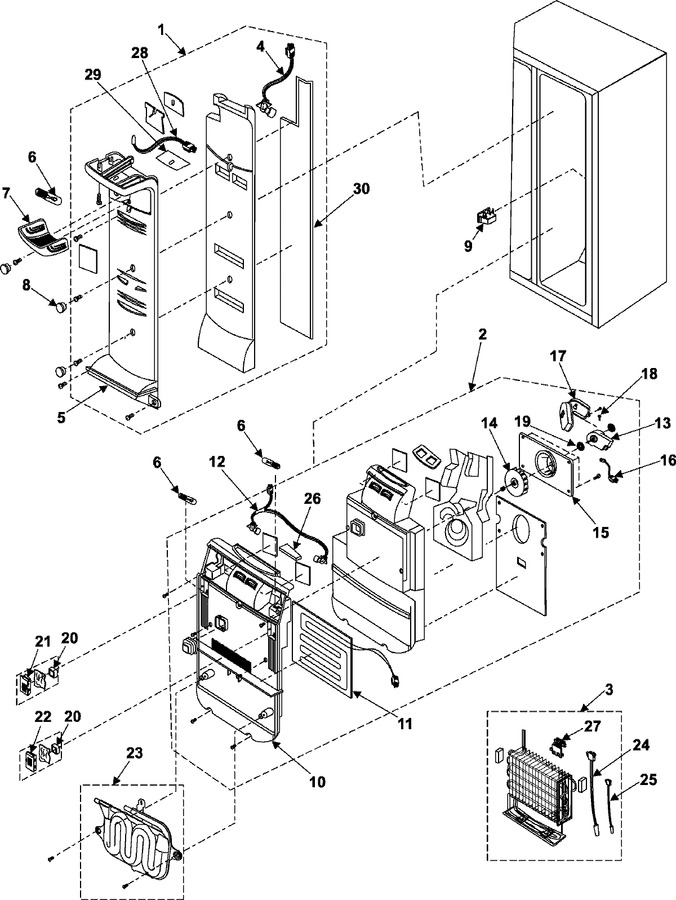

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02830A		Assy Cover-multi Ref		Appelez-nous	-
2	DA97-02810H		Assy Cover Evap-ref				$ 134.93
3	555555		Assy Evap-ref   (Replaces: DA96-00020Q)				$ 151.94
4	DA47-00112G		Lamp Holder;e17,250v,75w,-,c52		Appelez-nous	-
5	DA63-02553A		Cover-multi Ref		Appelez-nous	-
6	WPA3073101		Lamp-incandescent;130v,-,30w,b   (Replaces: 4713-001197)			Immediately	$ 10.90
7	DA63-00813B		Cover-lamp Ref,up		Appelez-nous	-
8	DA67-30266K		Cap-screw;a-top,cool-white,sc-				$ 0.85
9	DA34-10110E		Switch Door-r;-,sliding,-,-,25				$ 50.74
10	DA63-00812B		Cover Evap-ref;a-top,cool-whjt				$ 138.18
11	DA47-00200C		Heater-water Tank				$ 74.11
12	DA47-00112A		Lamp Holder		Appelez-nous	-
13	DA31-00002S		Motor-fan				$ 131.03
14	DA31-00010D		Fan-ass`y			Immediately	$ 21.97
14	DA31-00015C		Fan-turbo				$ 12.12
14	DA61-20128A		Spring-fan				$ 0.85
15	DA61-00774A		Case Motor		Appelez-nous	-
16	DA39-00060K		W/harness Motor				$ 118.35
17	DA63-00713A		Cover-motor				$ 8.47
18	DA63-40167A		Grommet-cover Chil				$ 2.50
19	DA63-40119A		Grommet-motor			Immediately	$ 2.50
20	DA02-00111A		Catalyst				$ 19.67
21	DA63-00856C		Cover-purifier R;a-top,hips,co				$ 5.60
22	DA63-00855D		Cover-purifier L;a-top,hips,co		Appelez-nous	-
23	555555		Assy Tank Water   (Replaces: DA97-02432B)				$ 151.94
24	DA47-00095E		Thermo Fuse-assy   (Replaces: DA47-10148J)			Immediately	$ 40.02
25	555555		Sensor Assy   (Replaces: DA32-00006B)				$ 151.94
26	DA62-00158A		Seal-cover Evap,up		Appelez-nous	-
27	DA61-00453A		Fixer-sensor (wire Harness)				$ 2.50
28	DA32-10105U		Sensor Assy			Immediately	$ 34.51
29	DA63-02561A		Cover-air Guide		Appelez-nous	-
30	DA62-00565A		Seal-multi Ref,re		Appelez-nous	-
