SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

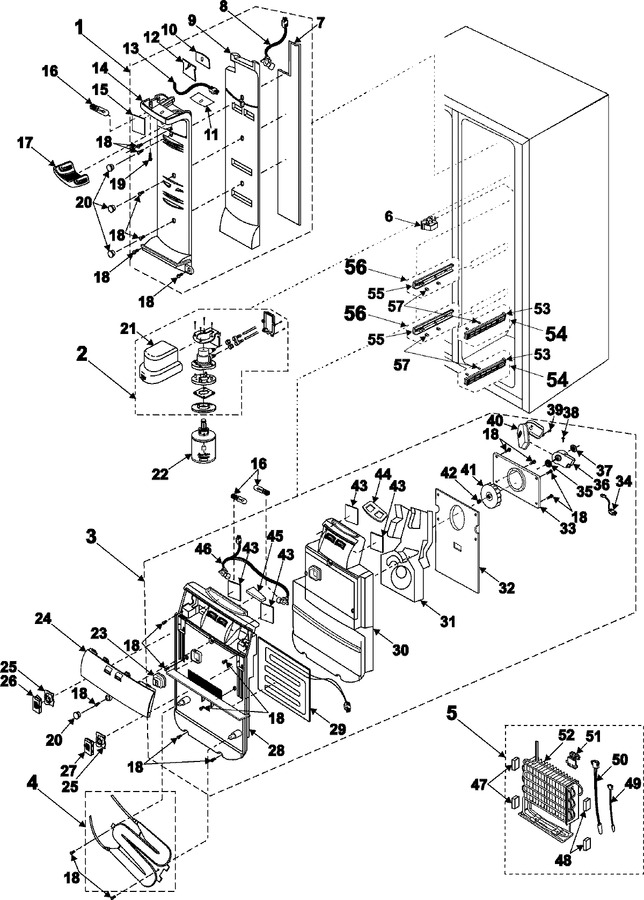

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-01293D		Assy Cover-multi,ref;best-buy,		Appelez-nous	-
2	DA97-01666A		Case, Filter				$ 99.91
3	555555		Assy Cover Evap-ref   (Replaces: DA97-02427E)				$ 151.94
4	DA97-00670D		Assy Tank Water		Appelez-nous	-
5	555555		Assy Evap-ref   (Replaces: DA96-00020G)				$ 151.94
6	DA34-10110E		Switch Door-r;-,sliding,-,-,25				$ 50.74
7	DA62-00565A		Seal-multi Ref,re		Appelez-nous	-
8	DA47-00112A		Lamp Holder		Appelez-nous	-
9	DA62-00517A		Insulation-multi Ref,a		Appelez-nous	-
10	DA62-00225A		Seal-cover Multi Up,b ----sna		Appelez-nous	-
11	DA61-00527A		Plate-air Multi,ref		Appelez-nous	-
12	DA62-00074A		Seal-cover Multi Up		Appelez-nous	-
13	DA32-10105U		Sensor Assy			Immediately	$ 34.51
14	DA63-00821B		Cover-multi Ref;a-top,pp,cool-		Appelez-nous	-
15	DA62-00133B		Seal-al Foil		Appelez-nous	-
16	WPA3073101		Lamp-incandescent;130v,-,30w,b   (Replaces: 4713-001197)			Immediately	$ 10.90
17	DA63-00813A		Cover-lamp Ref,up		Appelez-nous	-
18	6002-000215		Screw-tapping			Immediately	$ 1.66
19	6002-000601		Screw-tapping				$ 0.85
20	DA67-30266K		Cap-screw;a-top,cool-white,sc-				$ 0.85
21	DA97-00724C		Assy Cover-filter		Appelez-nous	-
22	DA29-00003G		Filter, Water   (Replaces: DA29-00003A)			Immediately	$ 49.99
23	DA61-00413A		Fixer-air Guide		Appelez-nous	-
24	DA63-00814B		Cover-lamp Ref,low		Appelez-nous	-
25	555555		Catalyst-ltc   (Replaces: DA02-90106K)				$ 151.94
26	DA63-00855D		Cover-purifier L;a-top,hips,co		Appelez-nous	-
27	DA63-00856C		Cover-purifier R;a-top,hips,co				$ 5.60
28	DA63-00812B		Cover Evap-ref;a-top,cool-whjt				$ 138.18
29	555555		Heater-water Tank   (Replaces: DA47-00094C)				$ 151.94
30	DA62-00053A		Insulation-evap Ref,a		Appelez-nous	-
31	DA62-00054A		Insulation-evap Ref,b ---sna		Appelez-nous	-
32	DA62-00072B		Seal-cover Evap Re		Appelez-nous	-
33	DA61-00417A		Case Motor				$ 19.40
34	DA39-00060K		W/harness Motor				$ 118.35
35	DA63-01146A		Grommet-motor				$ 6.95
36	DA31-00020E		Motor Dc-bldc,drep3020la,fre				$ 131.27
37	DA63-01808A		Grommet-motor(bldc)			Immediately	$ 5.57
38	DA63-40167A		Grommet-cover Chil				$ 2.50
39	6002-000480		Screw-tapping		Appelez-nous	-
40	DA63-00713A		Cover-motor				$ 8.47
41	DA31-00016A		Fan-circuit				$ 16.82
42	DA61-20128A		Spring-fan				$ 0.85
43	DA62-00133A		Seal-al Foil		Appelez-nous	-
44	DA62-00083A		Seal-air Ref		Appelez-nous	-
45	DA62-00158A		Seal-cover Evap,up		Appelez-nous	-
46	DA47-00112B		Lamp Holder		Appelez-nous	-
47	DA60-00040A		Spacer-evap Ref,l		Appelez-nous	-
48	DA60-00041A		Spacer-evap Ref,r		Appelez-nous	-
49	555555		Sensor Assy   (Replaces: DA32-00006B)				$ 151.94
50	555555		Thermo Fuse-assy   (Replaces: DA47-00095B)				$ 151.94
51	DA61-00453A		Fixer-sensor (wire Harness)				$ 2.50
52	DA59-00234H		Evap Ref				$ 141.50
53	DA61-00299C		Rail-basket R(c-type);hips,a-t		Appelez-nous	-
54	DA97-00730G		Assy Rail-basket R(c-type);a-t		Appelez-nous	-
55	DA61-00298C		Rail-basket L(c-type);hips,a-t		Appelez-nous	-
56	DA97-00731G		Assy Rail-basket L(c-type);a-t		Appelez-nous	-
57	DA63-00202A		Grommet-rail				$ 0.74

    View Diagram in Separate Window       Print Part List
