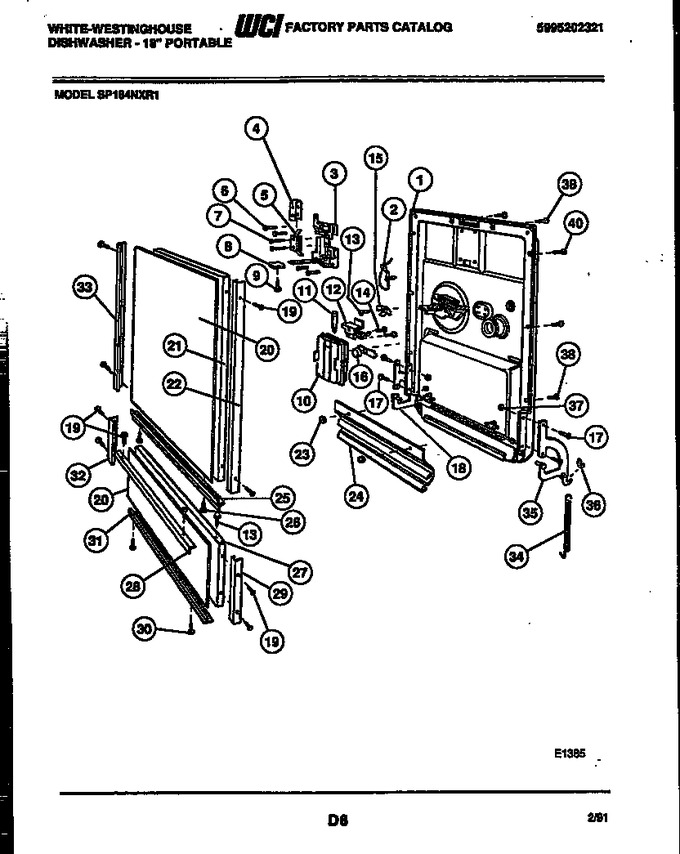

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809635		Door Assembly		Appelez-nous	-
2	5300809075		Wire Tie		Appelez-nous	-
3	5300809832		Latch Assembly		Appelez-nous	-
4	5300807450		Switch Cover		Appelez-nous	-
5	5300807043		Switch		Appelez-nous	-
6	5300809029		Screw-8a X 5/8`` (4)		Appelez-nous	-
7	5300808618		Screw-6-32 X 1`` (2)		Appelez-nous	-
8	5300808712		Latch Knob				$ 31.71
9	5300808715		Screw, 8, 32 X 5/16``		Appelez-nous	-
10	5300806753		Body Assembly				$ 69.93
11	5300809898		Plunger				$ 36.49
12	5300809872		Bi-metal Assembly		Appelez-nous	-
13	154419403		Screw-8 X 3/8`` (3)   (Replaces: 5300808658)				$ 13.10
14	5300807501		Screw-8 X 1/2``		Appelez-nous	-
15	5300807213		Grounding Terminal		Appelez-nous	-
16	5300809916		Fill Plug		Appelez-nous	-
17	5300803311		Screw-10-24 X 5/8`` (4)		Appelez-nous	-
18	5300807539		Counterbalance Arm Assy-lh				$ 7.88
19	5300809696		Screw 8 X 3/8`` (8)		Appelez-nous	-
20	5300808923		Door & Access Panel Inserts-black		Appelez-nous	-
21	5300808298		Door Panel- White		Appelez-nous	-
22	5300808990		Door Panel Trim-rh		Appelez-nous	-
23	5300809695		Speednut (2)		Appelez-nous	-
24	5300809636		Baffle-seal		Appelez-nous	-
25	5300809637		Door Pl Trim Bottom		Appelez-nous	-
26	5300807501		Screw-8 X 1/2`` (2)		Appelez-nous	-
27	5300808304		Access Panel, White		Appelez-nous	-
28	5300808471		Access Pl Top Trim				$ 27.35
29	5300808103		Access Pll Trim-rh		Appelez-nous	-
30	5304480396		Screw-8 X 5/8`` (2)   (Replaces: 5300803416)				$ 11.34
31	5300808303		Access Pl Trim-bottom		Appelez-nous	-
32	5300808104		Access Pl Trim-lh		Appelez-nous	-
33	5300808991		Door Panel Trim-lh		Appelez-nous	-
34	5300807601		Door Spring (2)				$ 74.42
35	5300807538		Counterbalance Arm Assy-rh		Appelez-nous	-
36	5300805884		Spring Pad (2)		Appelez-nous	-
37	5300808470		Nut (4)		Appelez-nous	-
38	5300809055		Screw-8 X 7/16`` (8)				$ 1.21
40	5300808749		Screw-8 X 5/8`` (2)		Appelez-nous	-
*40488	5300809977		Wood Door Trim Kit-optional		Appelez-nous	-
